Fuel Return Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

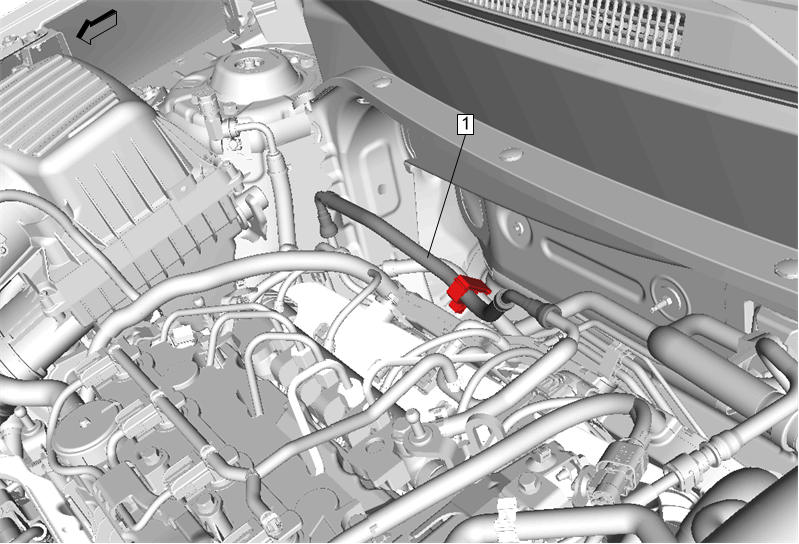

Fig 1: Fuel Return Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
1	Fuel Return Front Pipe Procedure Disconnect the fuel return front pipe and remove from retainer. Refer to Metal Collar Quick Connect Fitting Service Pressurize fuel system and check for fuel leaks.

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedure Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement

Fuel Return Front Pipe

Procedure

Disconnect the fuel return front pipe and remove from retainer. Refer to Metal Collar Quick Connect Fitting Service
Pressurize fuel system and check for fuel leaks.
