Heater Inlet Hose Replacement (LH7 Terrain)

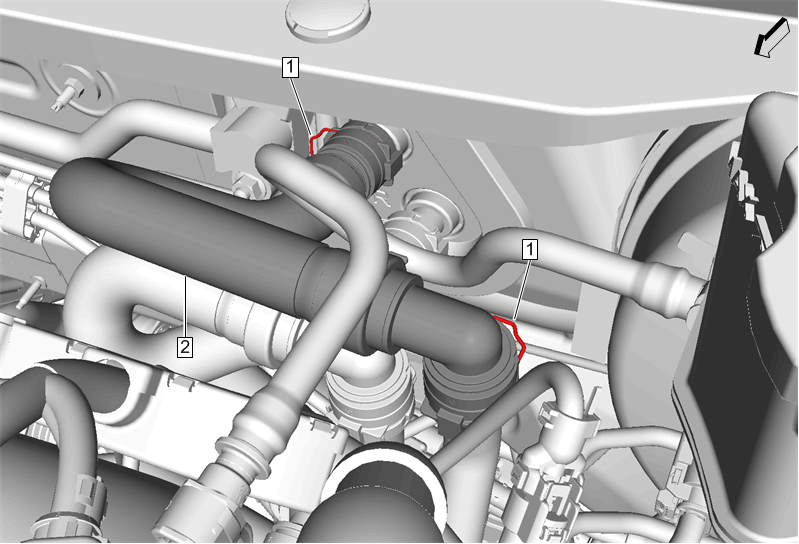

Fig 1: Heater Inlet Hose
GM4679654Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static)
  2. Intake Manifold Cover Replacement
1 Heater Inlet Hose Retainer (Qty: 2)
2 Heater Inlet Hose

Procedures

  1. Fill the cooling system. Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (Static)
  2. Start the engine and check for coolant leaks.
