Stabilizer Shaft Link Replacement (Terrain)

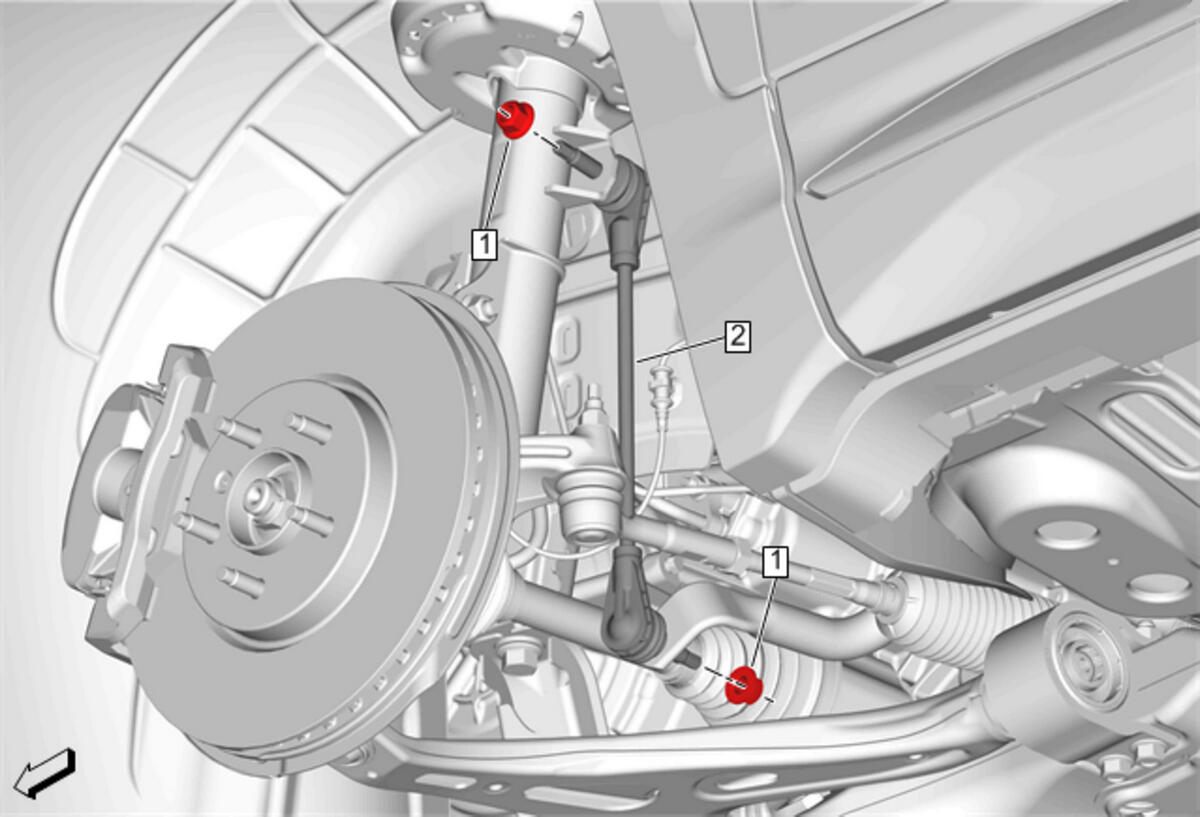

Fig 1: Stabilizer Shaft Link (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
1	Front Stabilizer Shaft Link Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  100 N.m (74 lb ft)
2	Front Stabilizer Shaft Link
