Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

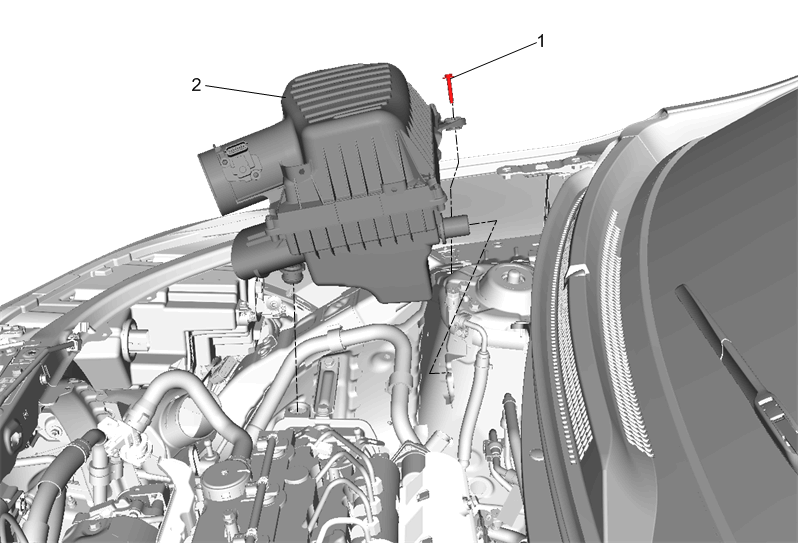

Fig 1: Air Cleaner Assembly And Fastener
GM4675649Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Air Cleaner Outlet Duct. Refer to Air Cleaner Outlet Duct Replacement
  2. Remove Intake Air Duct. Refer to Intake Air Duct Replacement
  3. Disconnect the electrical connector.
1 Air Cleaner Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Air Cleaner Assembly

Procedure

  1. Remove the air cleaner housing from the retainers.
  2. Remove wiring harness from air cleaner assembly.
  3. Transfer parts as necessary.
