Fuel Feed Front Pipe Replacement

WARNING: This page is about a different variant/trim than selected.

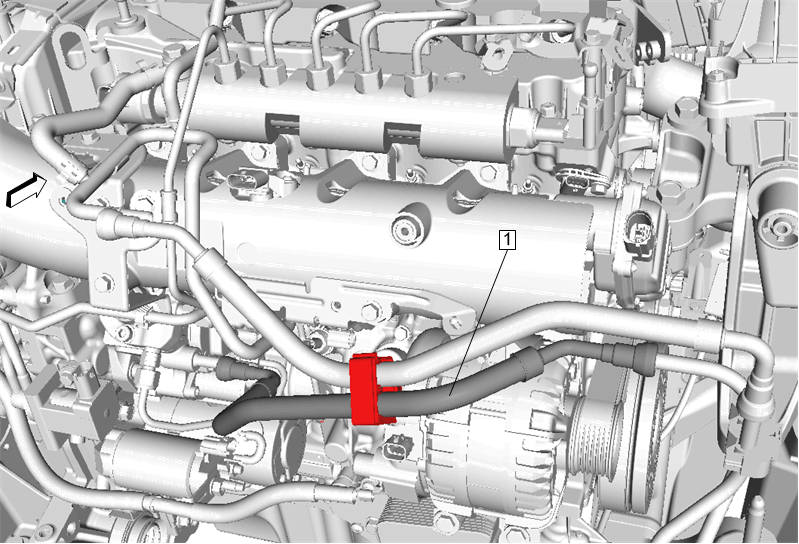

Fig 1: Fuel Feed Front Pipe

GM4699212

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle

1

Fuel Feed Front Pipe

Procedure

Disconnect the fuel feed front pipe and remove from retainer. Refer to Metal Collar Quick Connect Fitting Service
Prime the fuel system. Refer to Fuel System Priming
Pressurize fuel system and check for fuel leaks.
