Instrument Panel Assembly Replacement

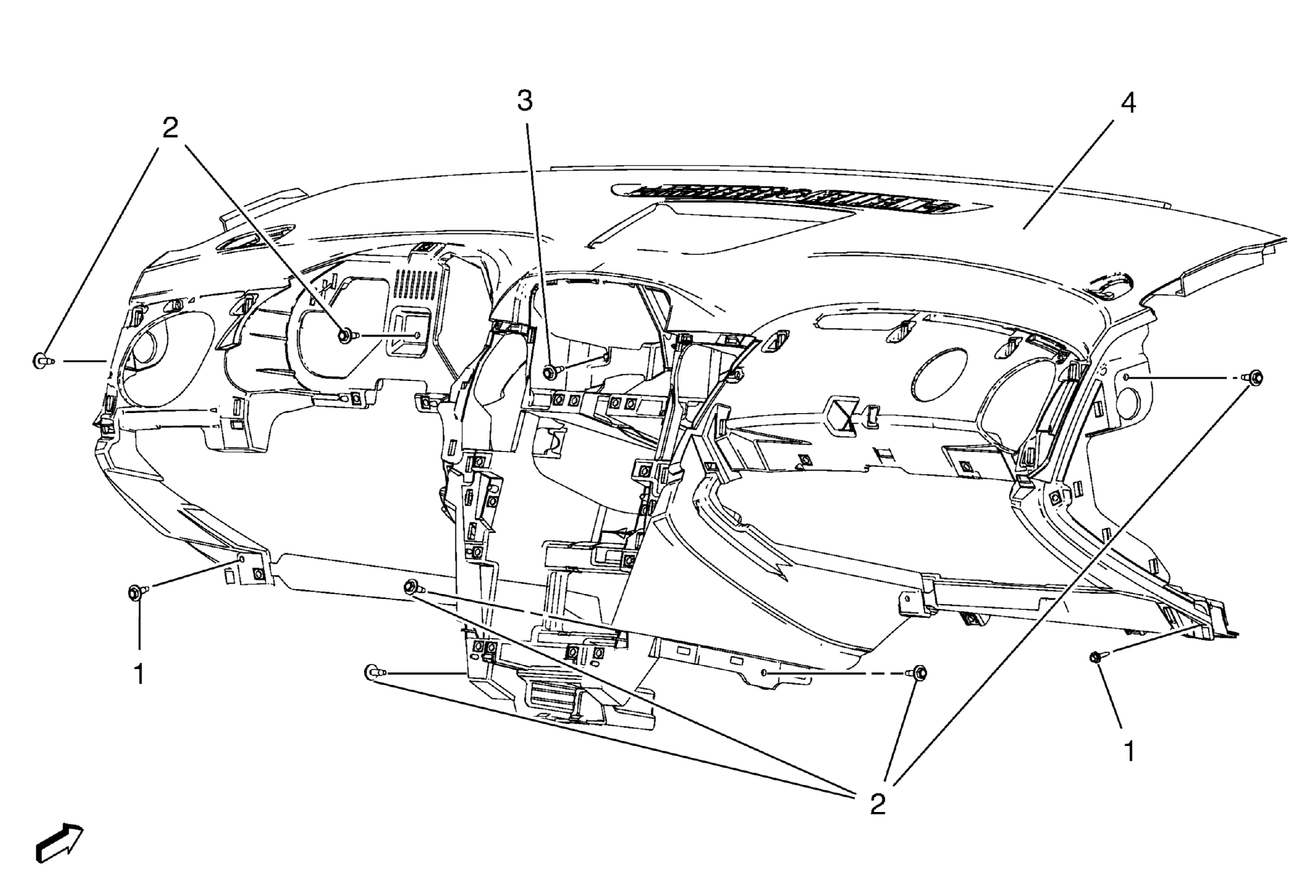

Fig 1: View Of Instrument Panel Assembly And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures SIR Disabling and Enabling . Windshield Garnish Molding Replacement . Front Floor Console Replacement . Radio Replacement . Instrument Panel Upper Compartment Replacement . Instrument Panel Accessory Bezel Replacement . Steering Column Replacement . Instrument Panel Outer Trim Cover Replacement - Left Side . Instrument Panel Molding Replacement . Instrument Panel Upper Trim Panel Replacement - Right Side and Instrument Panel Upper Trim Panel Replacement - Left Side .
1	Instrument Panel Bolt [2x] CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Bolt [6x] Tighten 7 N.m (62 lb in)
3	Instrument Panel Carrier Bracket Bolt Tighten 7 N.m (62 lb in)
4	Instrument Panel Assembly Procedure If needed, loosen the transmission control housing. Note location and routing of the instrument panel wiring harness prior to removal of the instrument panel assembly to ensure proper reinstallation. Disconnect the wiring harness from the instrument panel assembly. With the aid of an assistant, remove the instrument panel assembly from the vehicle. When replacing the instrument panel assembly, transfer all necessary components.
