Instrument Panel Upper Trim Panel Replacement - Left Side

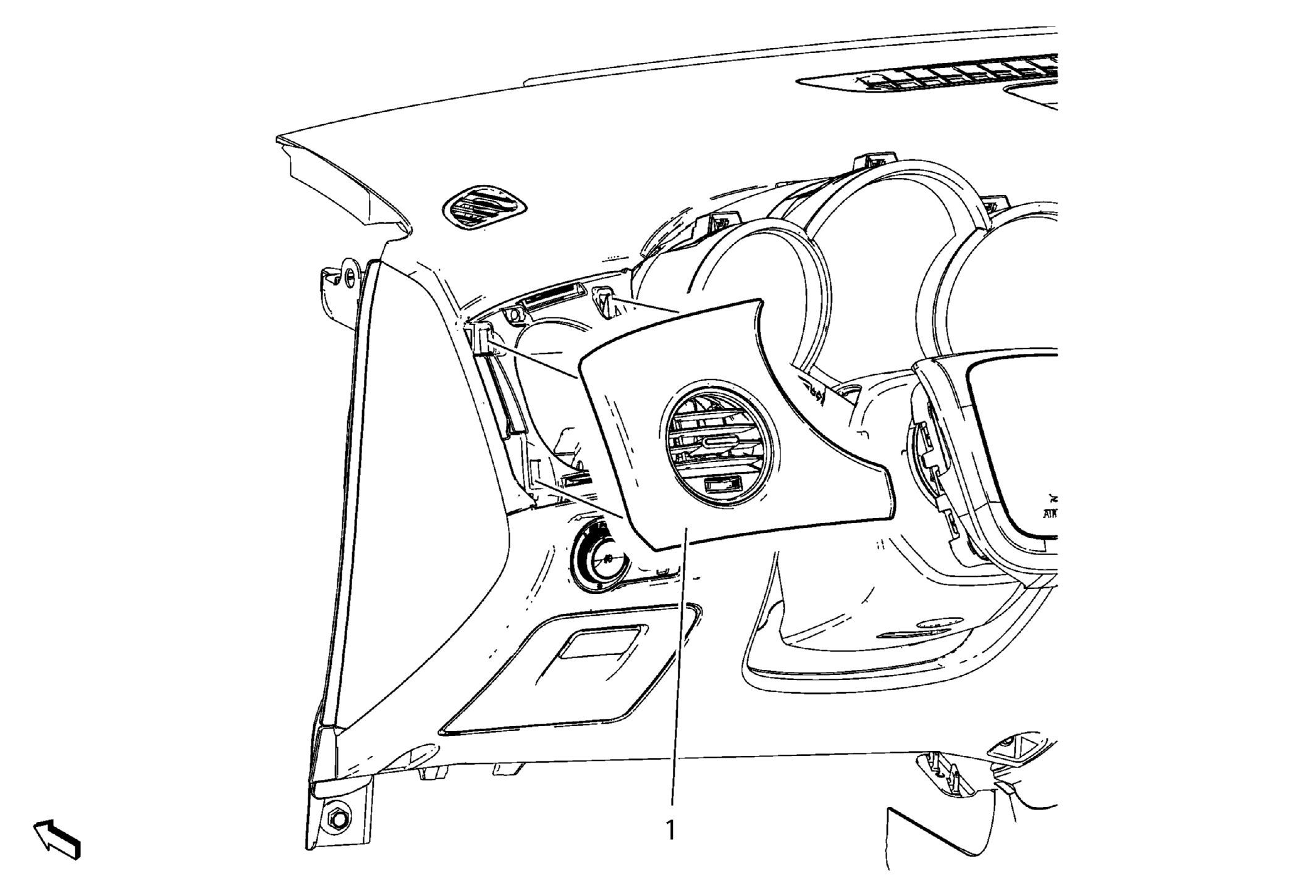

Fig 1: Instrument Panel Upper Trim Panel - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove instrument panel cluster. Refer to Instrument Cluster Replacement .
1	Instrument Panel Upper Trim Panel - Left Side Procedure  When replacing the instrument panel upper trim panel, transfer the instrument panel outer air outlet.
