Windshield Garnish Molding Replacement

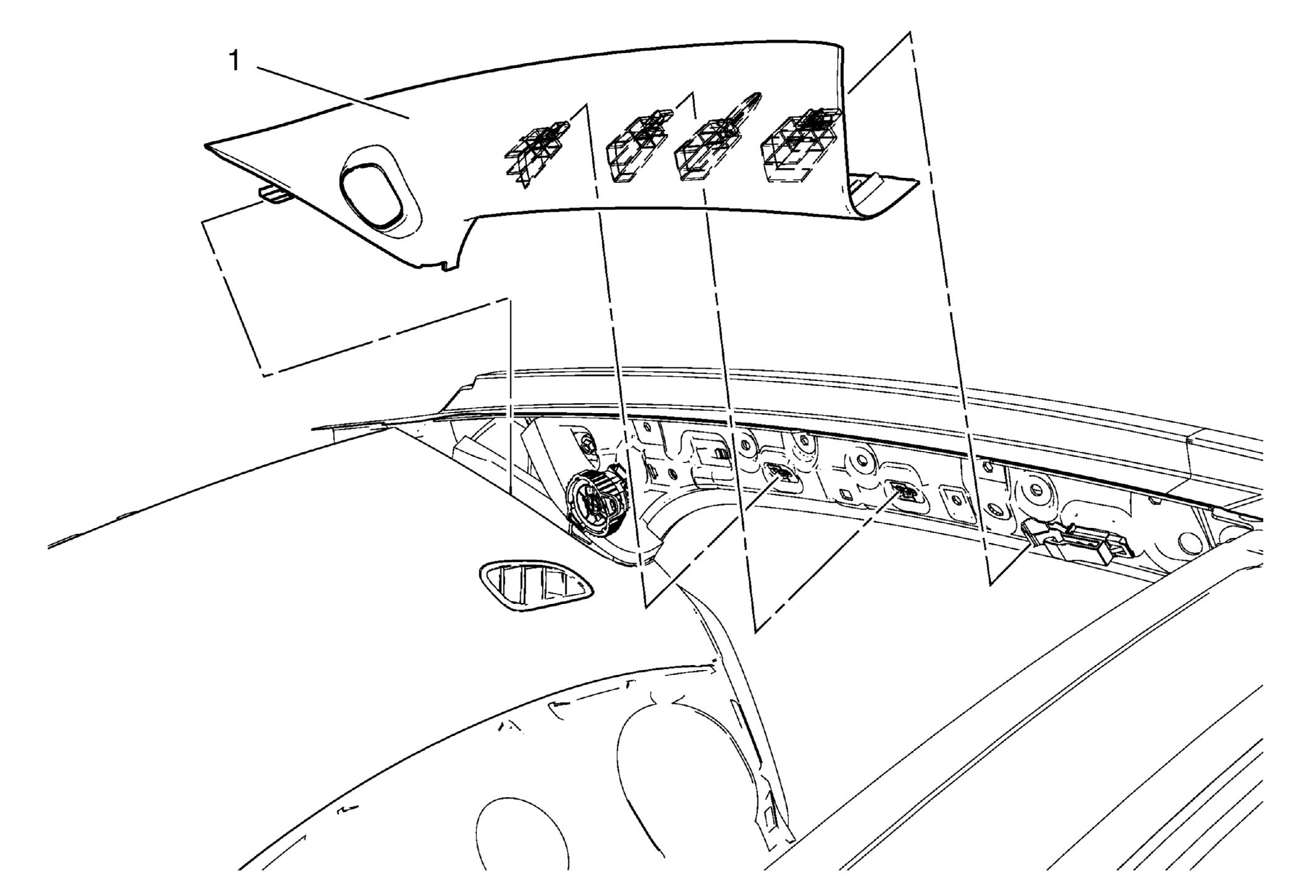

Fig 1: Windshield Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Windshield Garnish Molding Procedure Loosen tether clip and steel clips. Disconnect electrical connector. The tether clip at the upper portion of the garnish molding MUST be replaced any time the garnish molding is removed.

Callout

Component Name

Preliminary Procedures
Disable the SIR system. Refer to SIR Disabling and Enabling .

Windshield Garnish Molding

Procedure

Loosen tether clip and steel clips.
Disconnect electrical connector.
The tether clip at the upper portion of the garnish molding MUST be replaced any time the garnish molding is removed.
