Front Floor Console Replacement

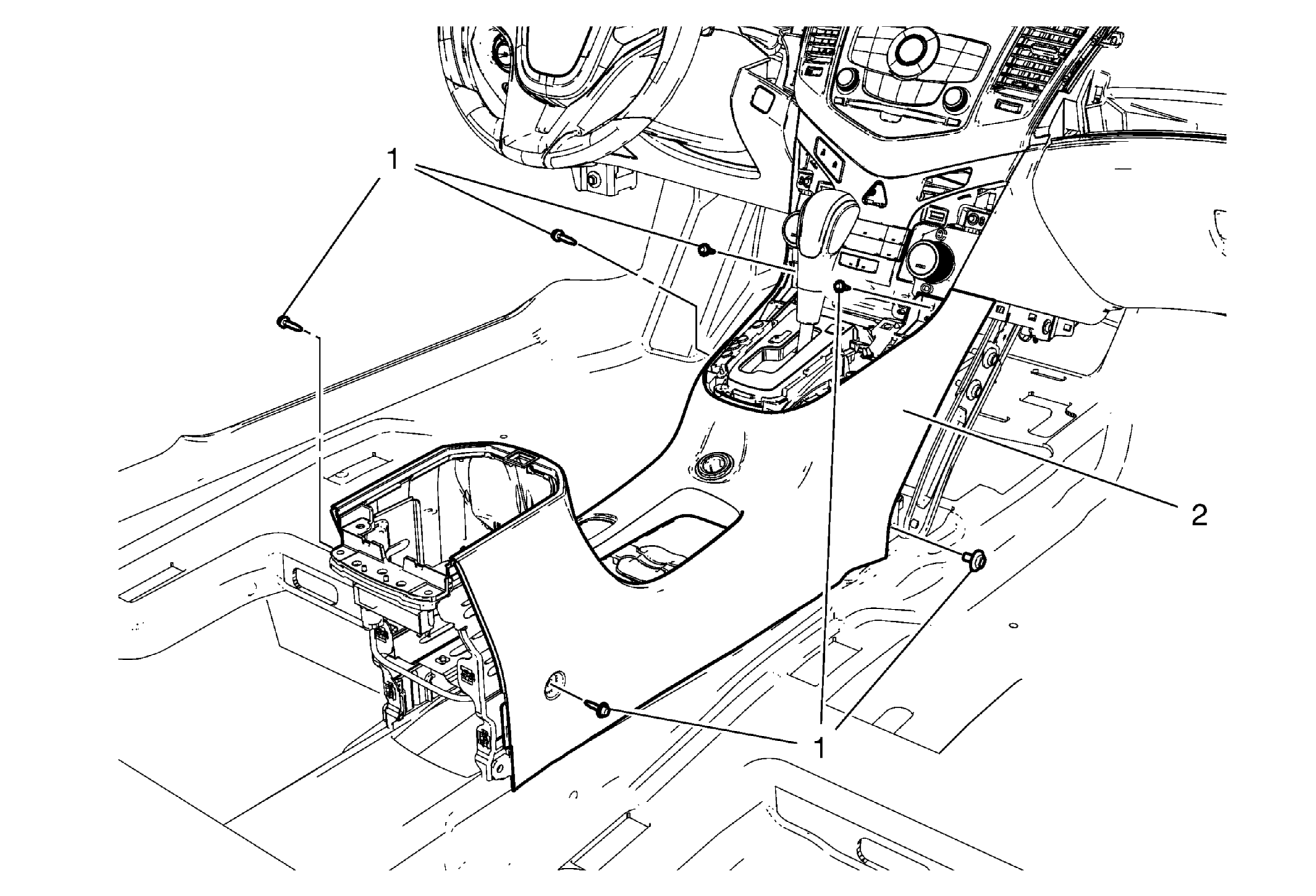

Fig 1: View Of Front Floor Console And Screws

GM2189269

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the instrument panel lower trim panel - left side. Refer to Instrument Panel Lower Trim Panel Replacement - Left Side .
Remove the instrument panel lower trim panel - right side. Refer to Instrument Panel Lower Trim Panel Replacement - Right Side .
Remove transmission control lever trim cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement .

1

Front Floor Console Screw (Qty: 6)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Front Floor Console

Procedure

Disconnect electrical connectors.
Transfer parts as needed.
