Instrument Panel Upper Compartment Replacement

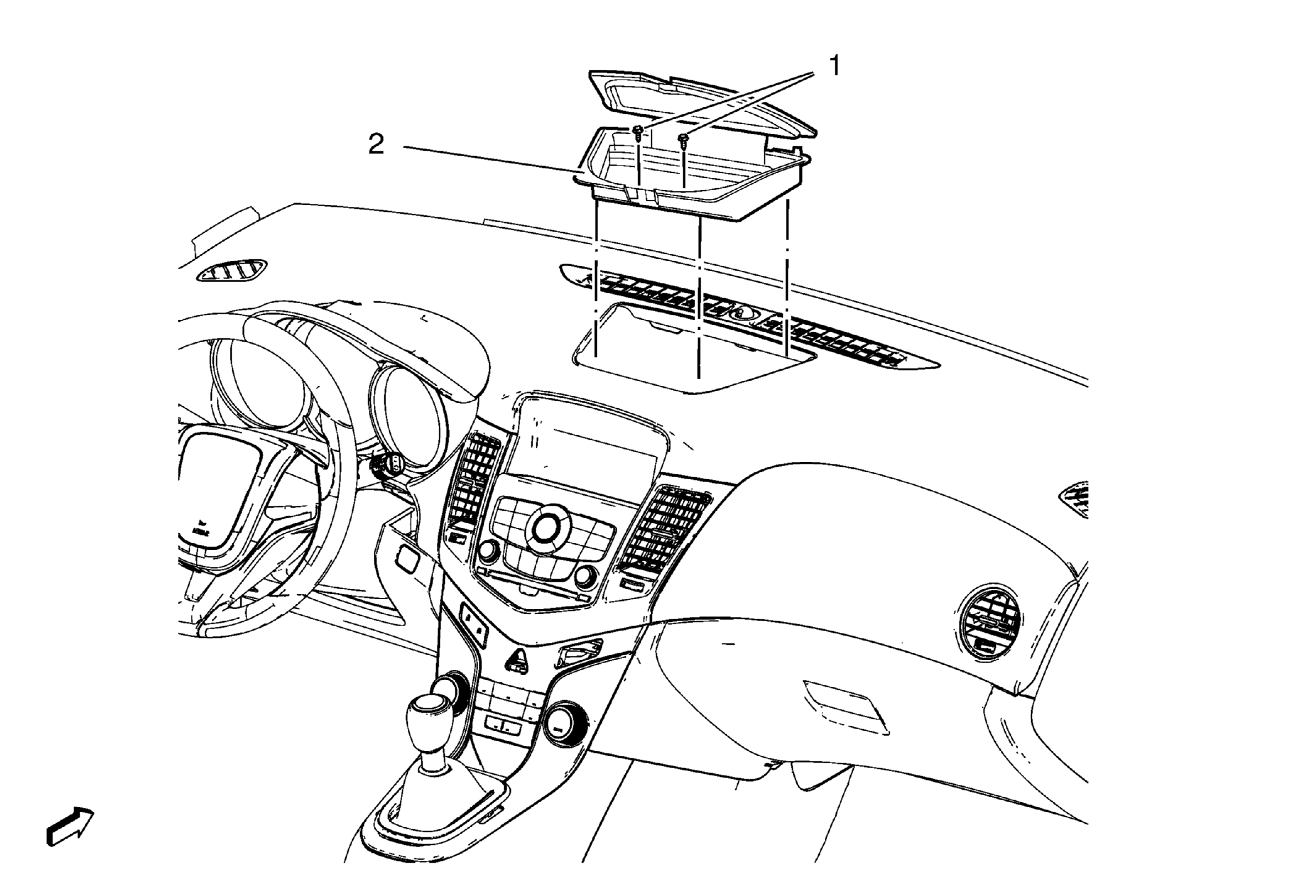

Fig 1: View Of Instrument Panel Upper Compartment Assembly And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Upper Compartment Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure  Before removing the instrument panel upper compartment screws, remove mat. Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Upper Compartment Assembly
