Instrument Panel Upper Trim Panel Replacement - Right Side

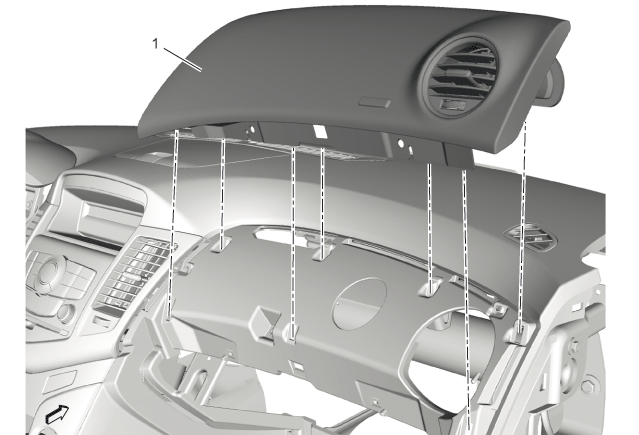

Fig 1: Instrument Panel Upper Trim Panel - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Instrument Panel Upper Trim Panel
