Instrument Panel Accessory Bezel Replacement

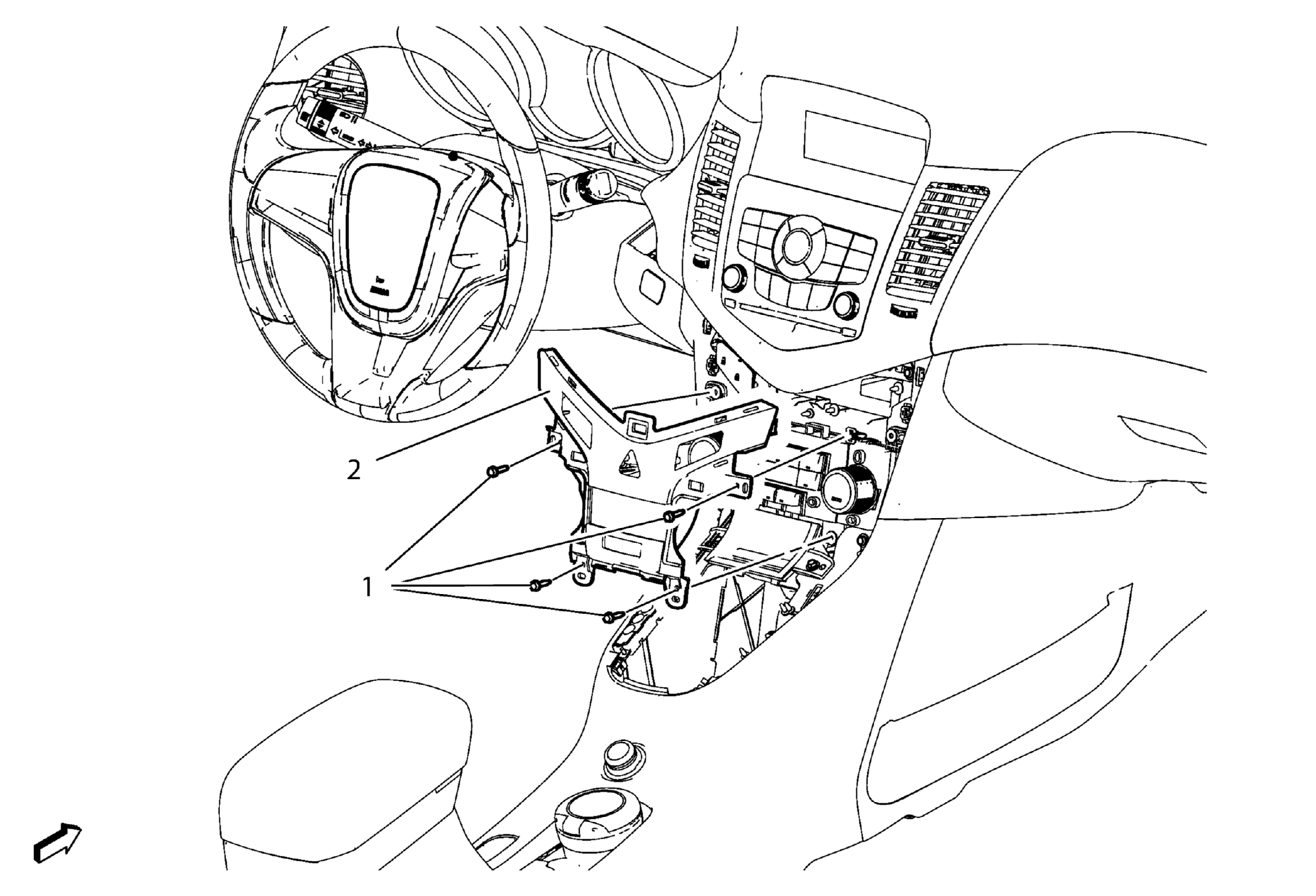

Fig 1: View Of Instrument Panel Accessory Bezel And Screws
GM2027292Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the instrument panel center upper molding. Refer to Instrument Panel Center Upper Molding Replacement .
  2. Remove the front floor console stowage tray. Refer to Front Floor Console Stowage Tray Replacement .
1 Instrument Panel Accessory Bezel Screw (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in).
2 Instrument Panel Accessory Bezel

Procedure

  1. Gently pry the outer edges of the bezel to release clips.
  2. Disconnect electrical connectors.
  3. Transfer parts as needed.
