Rear Seat Retractor Side Belt Replacement

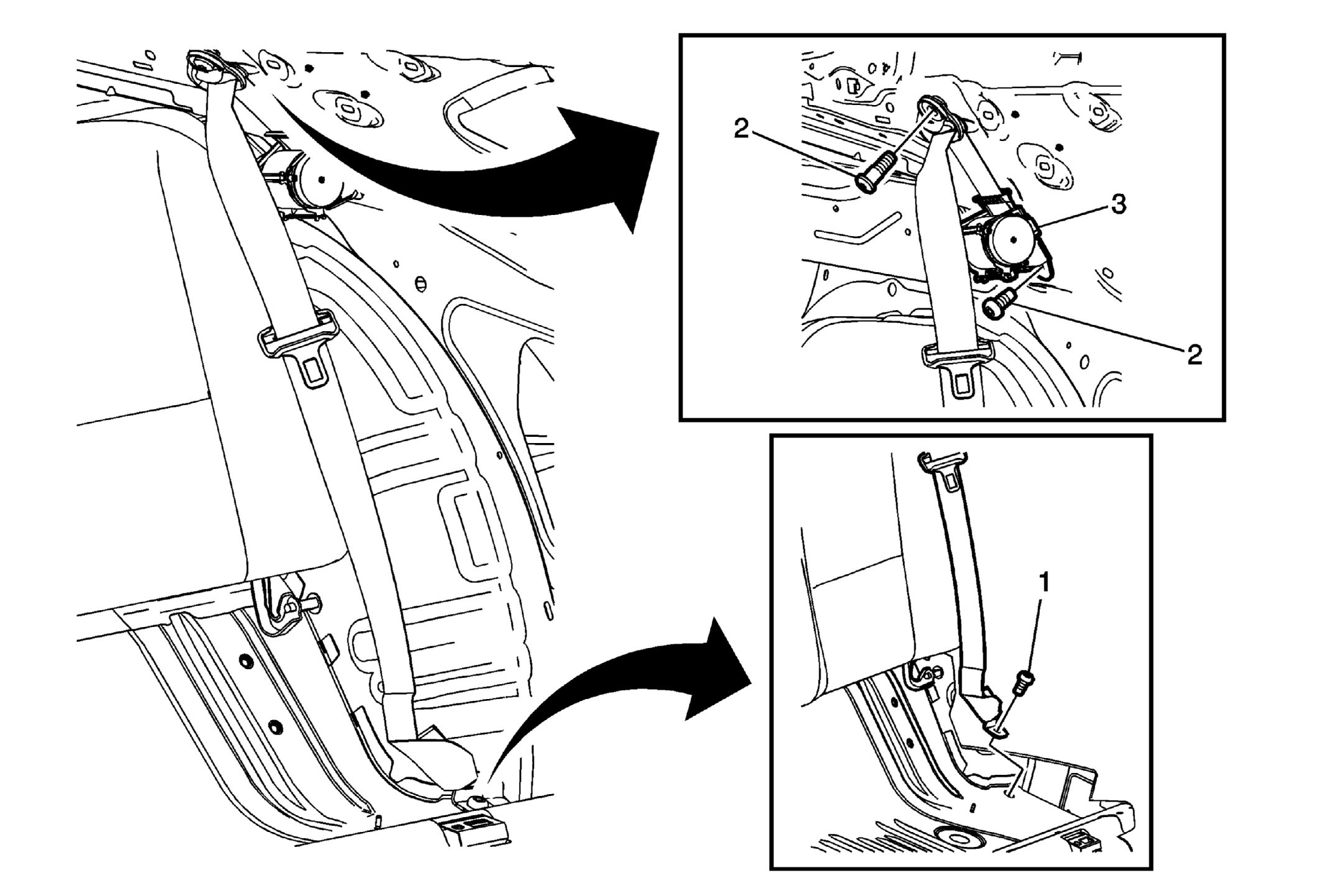

Fig 1: Rear Shoulder Seat Belt Retractor, Anchor Plate And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Remove the rear seat back. Refer to Rear Seat Back Cushion Replacement (Coupe) , Rear Seat Back Cushion Replacement (Convertible) . Remove the quarter upper rear trim panel. Refer to Quarter Upper Rear Trim Panel Replacement (Coupe) . Remove the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (Coupe) , Quarter Upper Trim Panel Replacement (Convertible) .
1	Seat Shoulder Belt Anchor Plate Fastener CAUTION: Refer to Fastener Caution . Tighten 36 N.m (27 lb ft)
2	Seat Belt Retractor Fastener (Qty: 2) Tighten 30 N.m (22 lb ft)
3	Rear Shoulder Seat Belt Retractor
