Quarter Upper Trim Panel Replacement (Convertible)

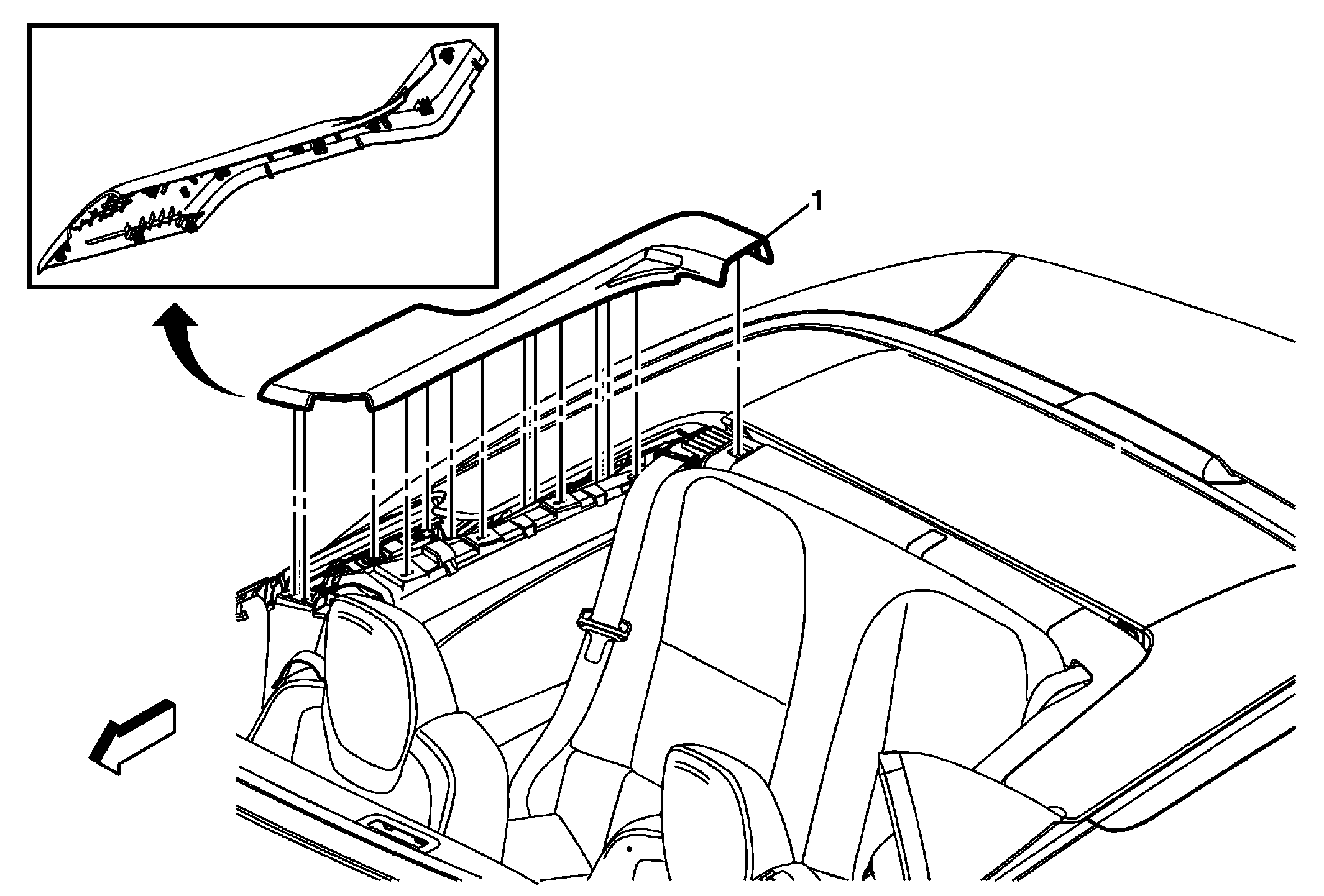

Fig 1: Quarter Upper Trim Panel
GM2534378Courtesy of GENERAL MOTORS COMPANY
Quarter Upper Trim Panel Replacement (Convertible)

Callout Component Name

Preliminary Procedures

  1. Place the folding top assembly in a full down position to allow access to the quarter upper trim panel.
  2. Remove the lower rear seat shoulder belt anchor plate fastener. Refer to Rear Seat Retractor Side Belt Replacement
1 Quarter Upper Trim Panel Assembly

Procedure

  1. Use a flat-bladed tool to aid in removal.
  2. Feed the seat belt through the opening in the quarter upper trim panel.
