Rear Seat Back Cushion Replacement (Coupe)

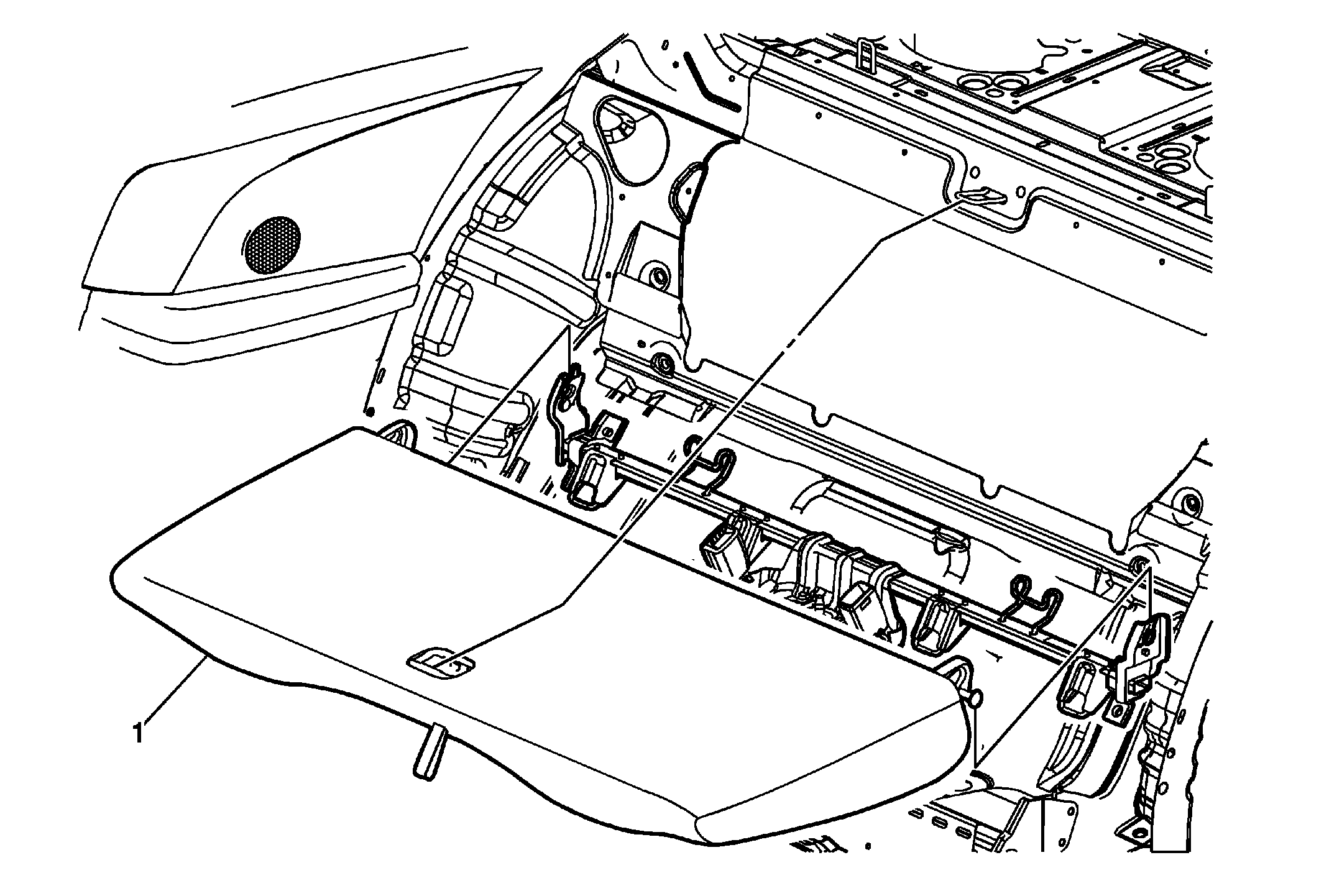

Fig 1: Rear Seat Back Cushion (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Back Cushion Procedure Pull the release strap located in the center of the seat back, folding the rear seat forward. Push rearward on both lower cross bar hinge locks to release the seat back frame. Pull the seat back cushion forward and upward to remove it from the vehicle. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .

Rear Seat Back Cushion

Procedure

Pull the release strap located in the center of the seat back, folding the rear seat forward.
Push rearward on both lower cross bar hinge locks to release the seat back frame.
Pull the seat back cushion forward and upward to remove it from the vehicle.
Transfer components as necessary.
