Quarter Upper Trim Panel Replacement (Coupe)

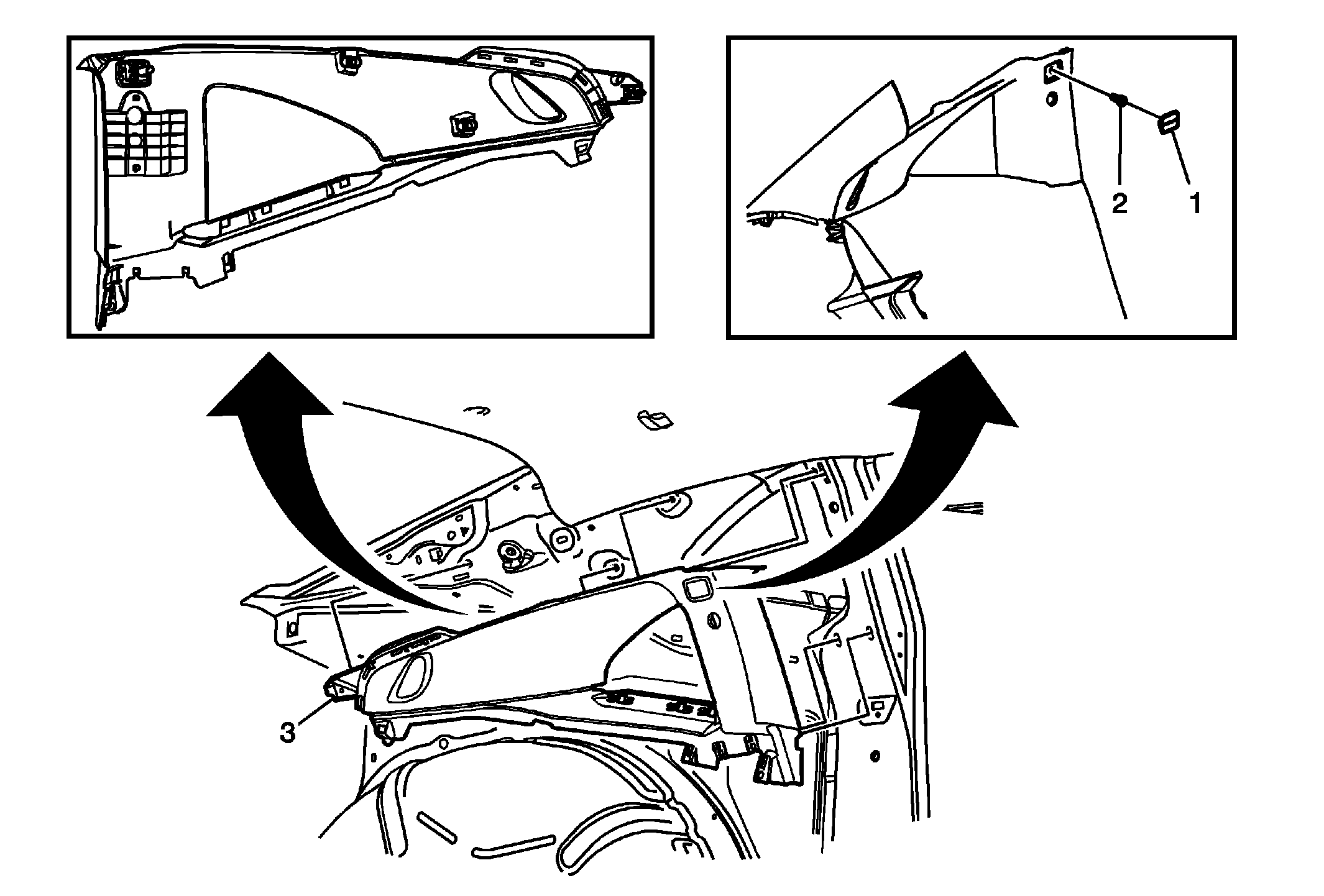

Fig 1: Quarter Upper Trim Panel, Fasteners And Bolt Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the quarter trim panel. Refer to Quarter Trim Panel Replacement (Coupe) , Quarter Trim Panel Replacement (Convertible) . Remove the quarter upper rear trim panel. Refer to Quarter Upper Rear Trim Panel Replacement (Coupe) . Remove the rear seat retractor side belt. Refer to Rear Seat Retractor Side Belt Replacement . Remove the driver or passenger seat retractor side belt. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .
1	Quarter Upper Trim Panel Bolt Cover Procedure Use a flat-bladed tool to release the cover.
2	Quarter Upper Trim Panel Fastener CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
3	Quarter Upper Trim Panel Assembly Procedure Disconnect the seat belt through the slot in the escutcheon opening.
