Rear Seat Back Cushion Replacement (Convertible)
Courtesy of GENERAL MOTORS COMPANY Rear Seat Back Cushion Replacement (Convertible)

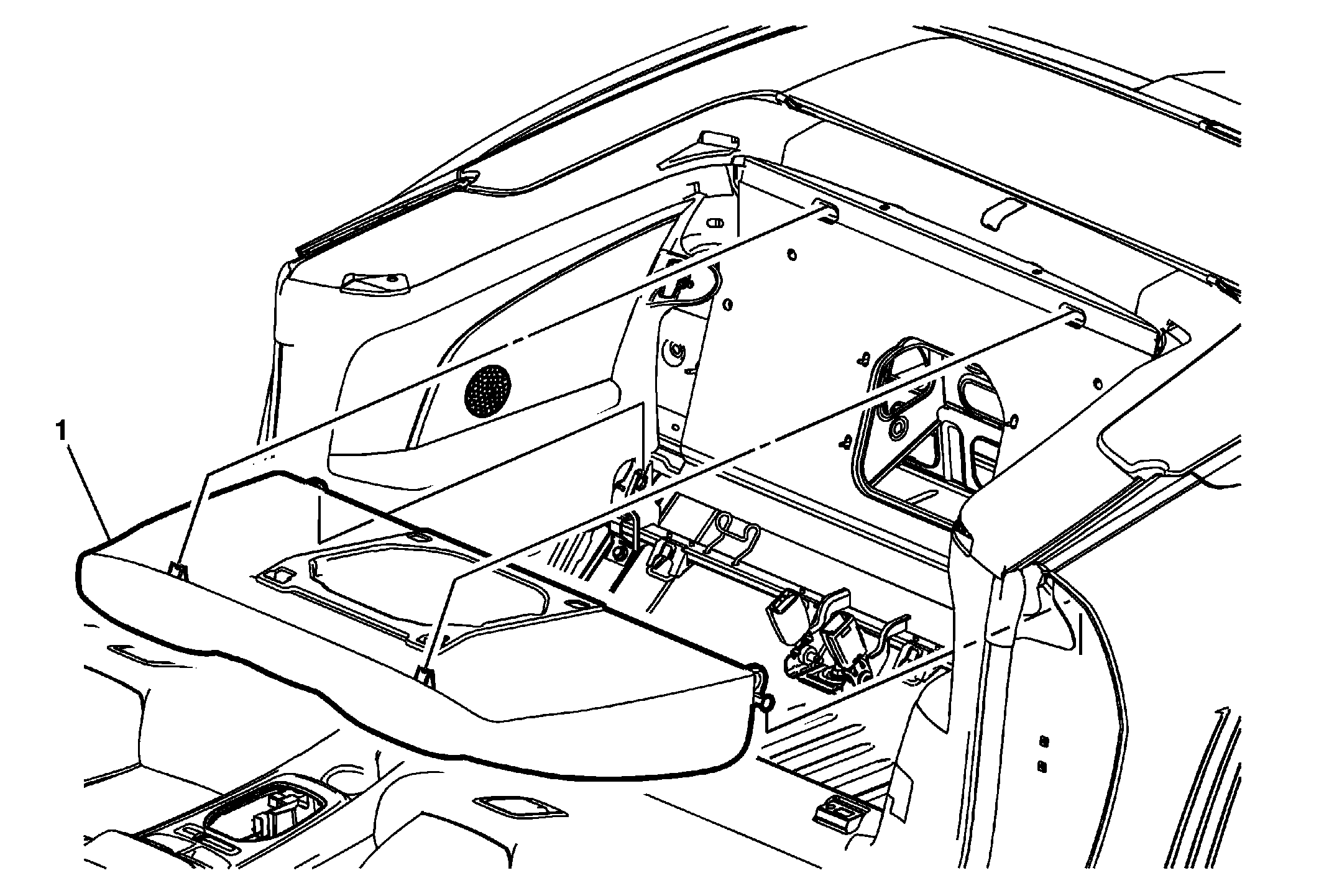

| Callout |
Component Name |
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . |
| 1 |
Rear Seat Back Cushion Procedure
- Using a flat bladed tool, release the seat back retainers through the access holes located between the seat back cushion and the rear end trim finish upper panel.
- Fold the seat back cushion down and line up the flats on the hinge pins with the slots on the hinges.
- Pull the seat back cushion upward to remove it from the vehicle.
- Transfer components as necessary.
|
