Rear Seat Cushion Replacement

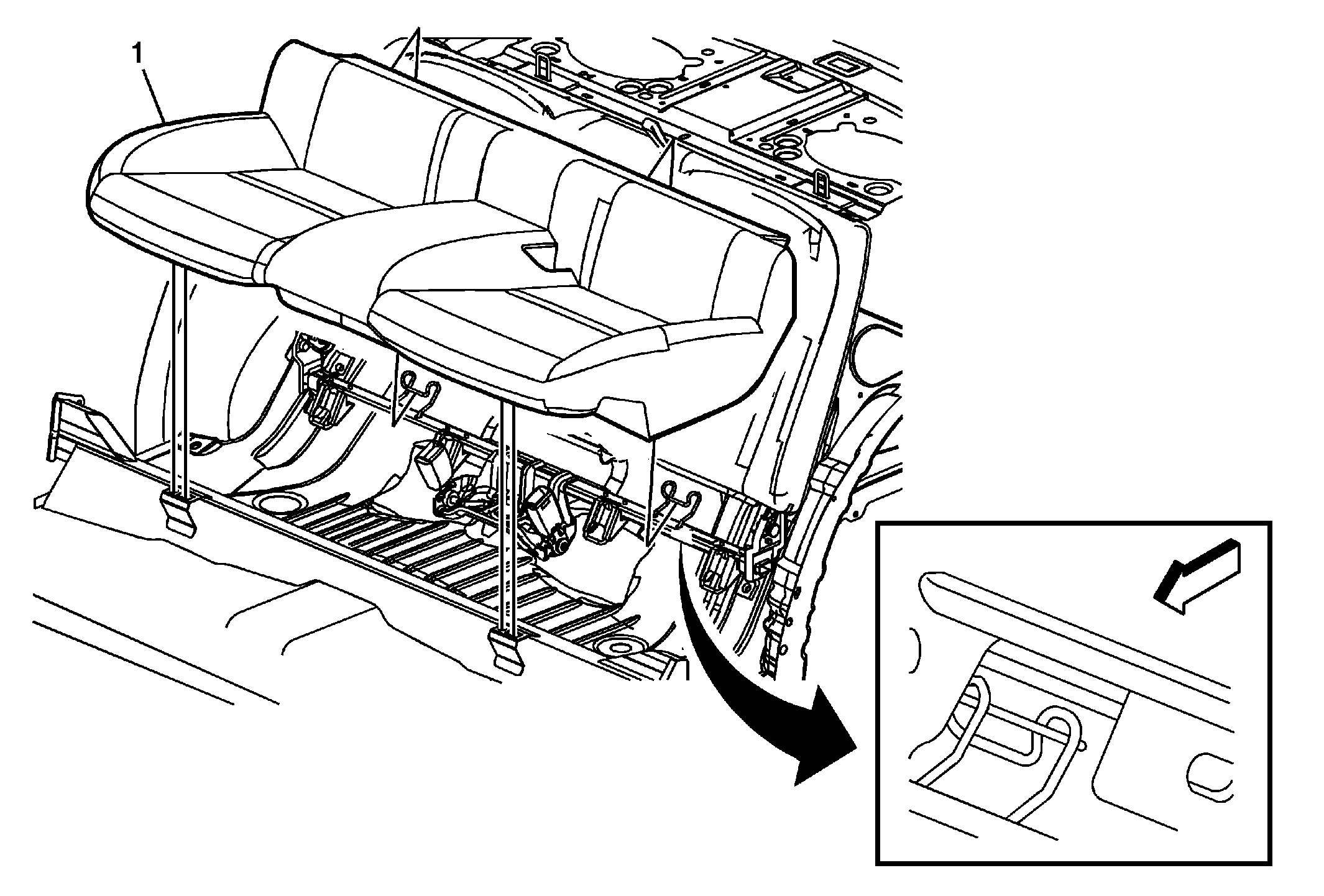

Fig 1: Rear Seat Cushion
GM2182848Courtesy of GENERAL MOTORS COMPANY
Rear Seat Cushion Replacement

Callout Component Name
1 Rear Seat Cushion

Procedure

  1. Lift up on the front of the seat cushion to disengage the cushion from the floor retainers.
  2. Push down on the rear of the seat to unhook the cushion wire from the lower cross bar hinges.
