Quarter Upper Rear Trim Panel Replacement (Coupe)

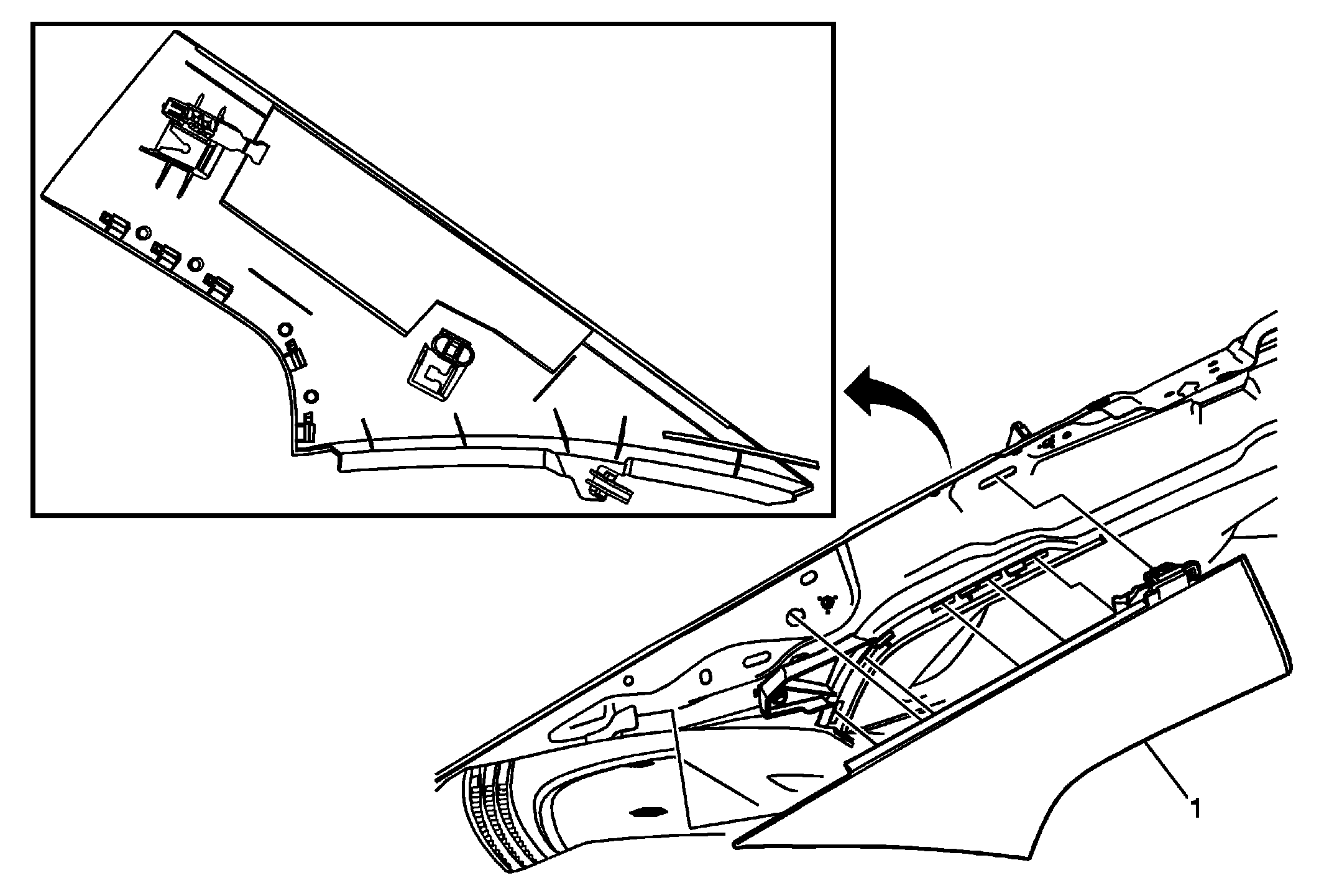

Fig 1: Quarter Upper Rear Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Quarter Upper Rear Trim Panel Assembly Procedure The tether clip at the upper portion of the garnish molding MUST be replaced every time the quarter upper rear trim panel is removed. Release the tether to remove. Securely attach the tether when reinstalling the molding.

Callout

Component Name

Preliminary Procedure
Disable the SIR system. Refer to SIR Disabling and Enabling .

Quarter Upper Rear Trim Panel Assembly

Procedure

The tether clip at the upper portion of the garnish molding MUST be replaced every time the quarter upper rear trim panel is removed.
Release the tether to remove.
Securely attach the tether when reinstalling the molding.
