Seat Cushion Cover and Pad Replacement - Front

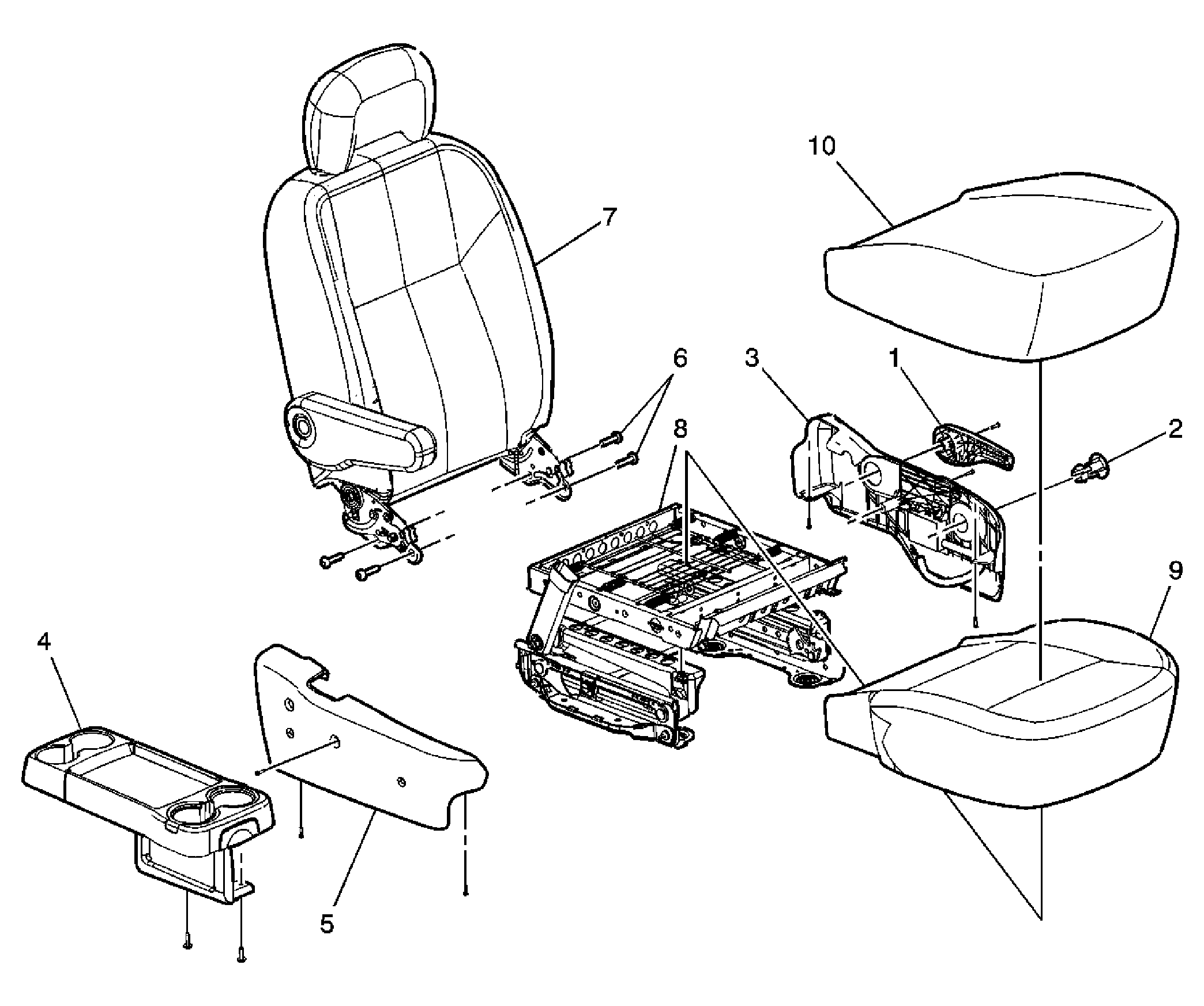

Fig 1: Front Seat Cushion Cover and Pad

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the front bucket seat. Refer to Front Seat Replacement - Bucket .
1	Seat Recliner Handle Refer to Driver Seat Recliner Handle and Passenger Seat Recliner Handle Replacement .
2	Seat Recliner Handle Plug
3	Seat Outer Adjuster Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
4	Seat Tray Assembly Refer to Front Seat Storage Tray Replacement .
5	Seat Outer Adjuster Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
6	Seat Inner Adjuster Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
7	Seat Back Recliner Bolts (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: 48 N.m (35 lb ft)
8	Seat Back Assembly
9	Seat Cushion Frame Assembly Refer to Front Seat Frame Assembly Replacement - Driver or Front Seat Frame Assembly Replacement - Passenger .
10	Seat Cushion Assembly
11	Seat Cushion Cover Tip: The seat cushion cover is secured to the seat cushion with hog rings that must be removed when replacing the cover. For the passenger seat, re-zero the inflatable restraint passenger presence system. Refer to Passenger Presence System Programming and Setup .
