Front Seat Storage Tray Replacement

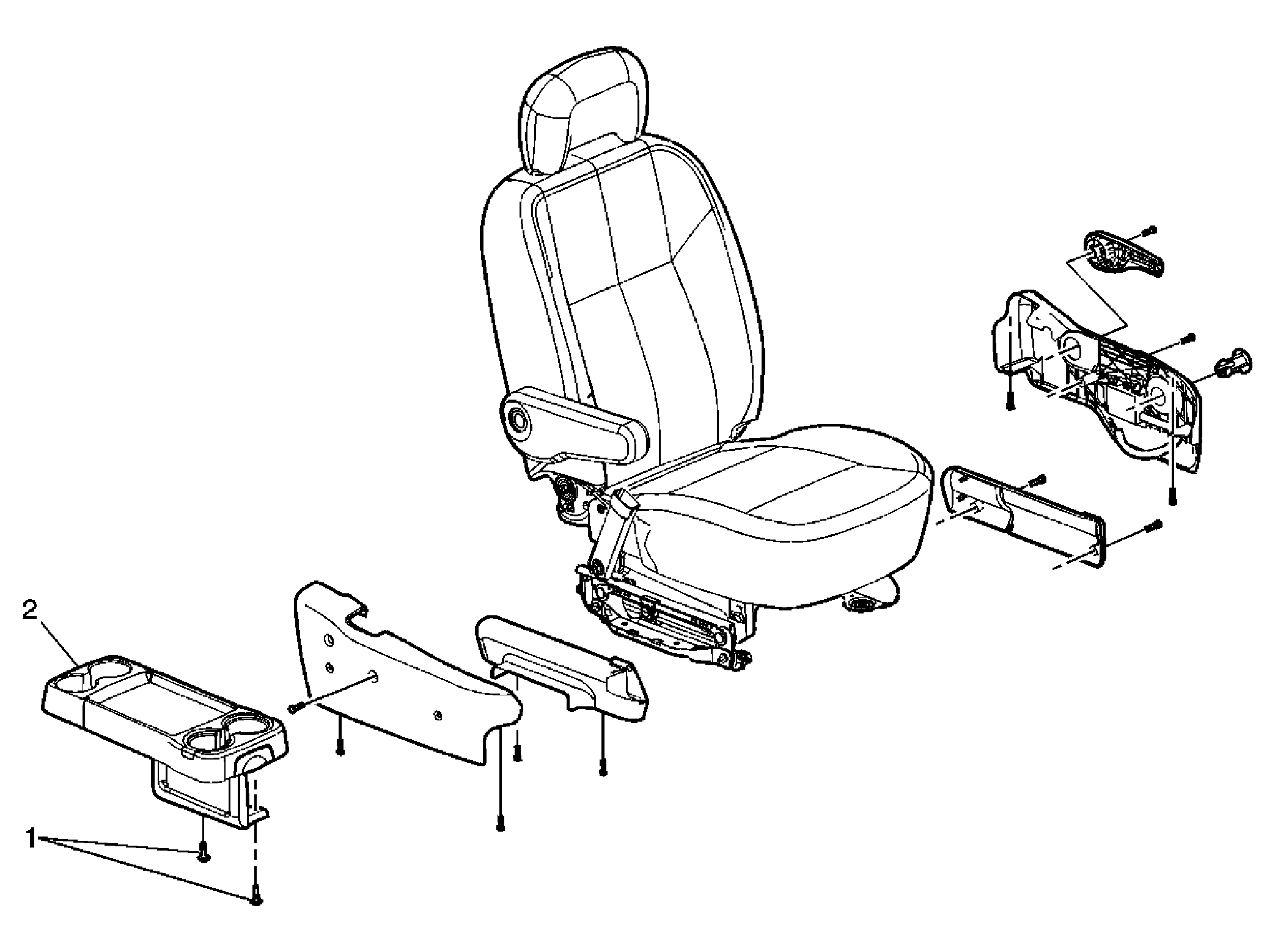

Fig 1: Front Seat Storage Tray
GM1546665Courtesy of GENERAL MOTORS CORP.
Front Seat Storage Tray Replacement

Callout Component Name
Preliminary Procedure:
Remove the front bucket seat. Refer to Front Seat Replacement - Bucket .
1 Seat Storage Tray Assembly Bolt (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  32 N.m (24 lb ft)
2 Seat Storage Tray Assembly
