Front Seat Frame Assembly Replacement - Passenger

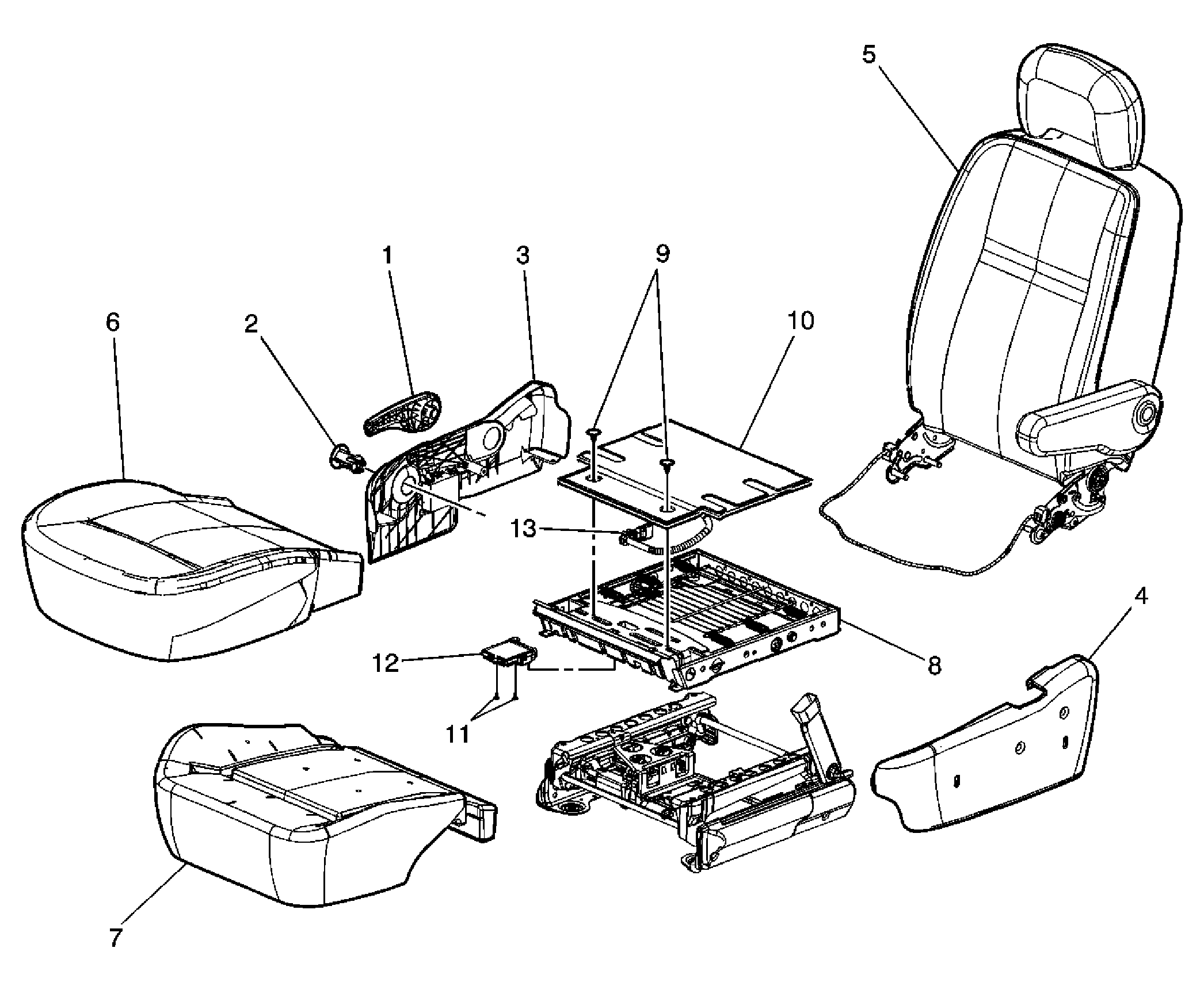

Fig 1: Front Seat Frame Assembly (Passenger)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. The bladder, the pressure sensor, the seat cushion, and the control module are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly. Preliminary Procedures Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . Re-zero the inflatable restraint passenger presence system whenever the seat cushion or any component of the passenger presence system is removed. Refer to Passenger Presence System Rezeroing .
1	Seat Recliner Handle Refer to Driver Seat Recliner Handle and Passenger Seat Recliner Handle Replacement .
2	Seat Recliner Handle Plug
3	Seat Outer Adjuster Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
4	Seat Outer Adjuster Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
5	Seat Back Assembly Refer to Front Seat Back Replacement .
6	Seat Cushion Cover Refer to Front Seat Adjuster Track Finish Cover Replacement .
7	Seat Cushion Pad Assembly Refer to Front Seat Adjuster Track Finish Cover Replacement .
8	Seat Cushion Frame Assembly
9	Inflatable Restraint Passenger Presence System Bladder Retainer (Qty: 2)
10	Inflatable Restraint Passenger Presence System Bladder
11	Electronic Control Unit Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
12	Electronic Control Unit
13	Inflatable Restraint Passenger Presence System Pressure Switch
