Front Seat Replacement - Bucket

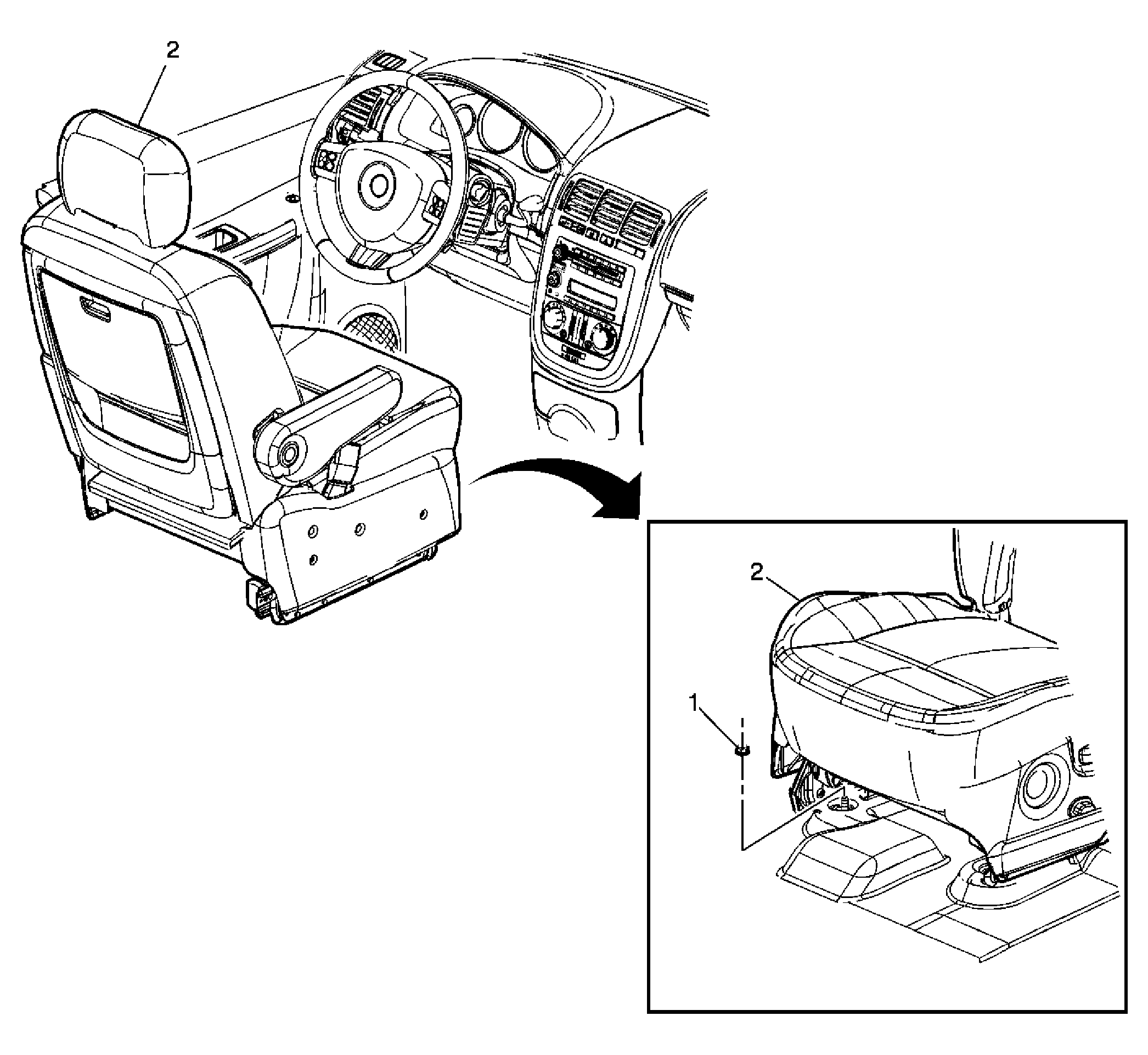

Fig 1: Front Seat (Bucket)
GM1527305Courtesy of GENERAL MOTORS CORP.
Front Seat Replacement - Bucket

Callout Component Name
Preliminary Procedure:
Disable the SIR system. Refer to SIR Disabling and Enabling .
1 Seat Riser Nut (Qty: 4)
NOTE: Refer to Fastener Notice .

Tighten:  45 N.m (33 lb ft)
2 Seat Assembly
Tip:  Disconnect the electrical connectors.
