Driver Seat Recliner Handle and Passenger Seat Recliner Handle Replacement

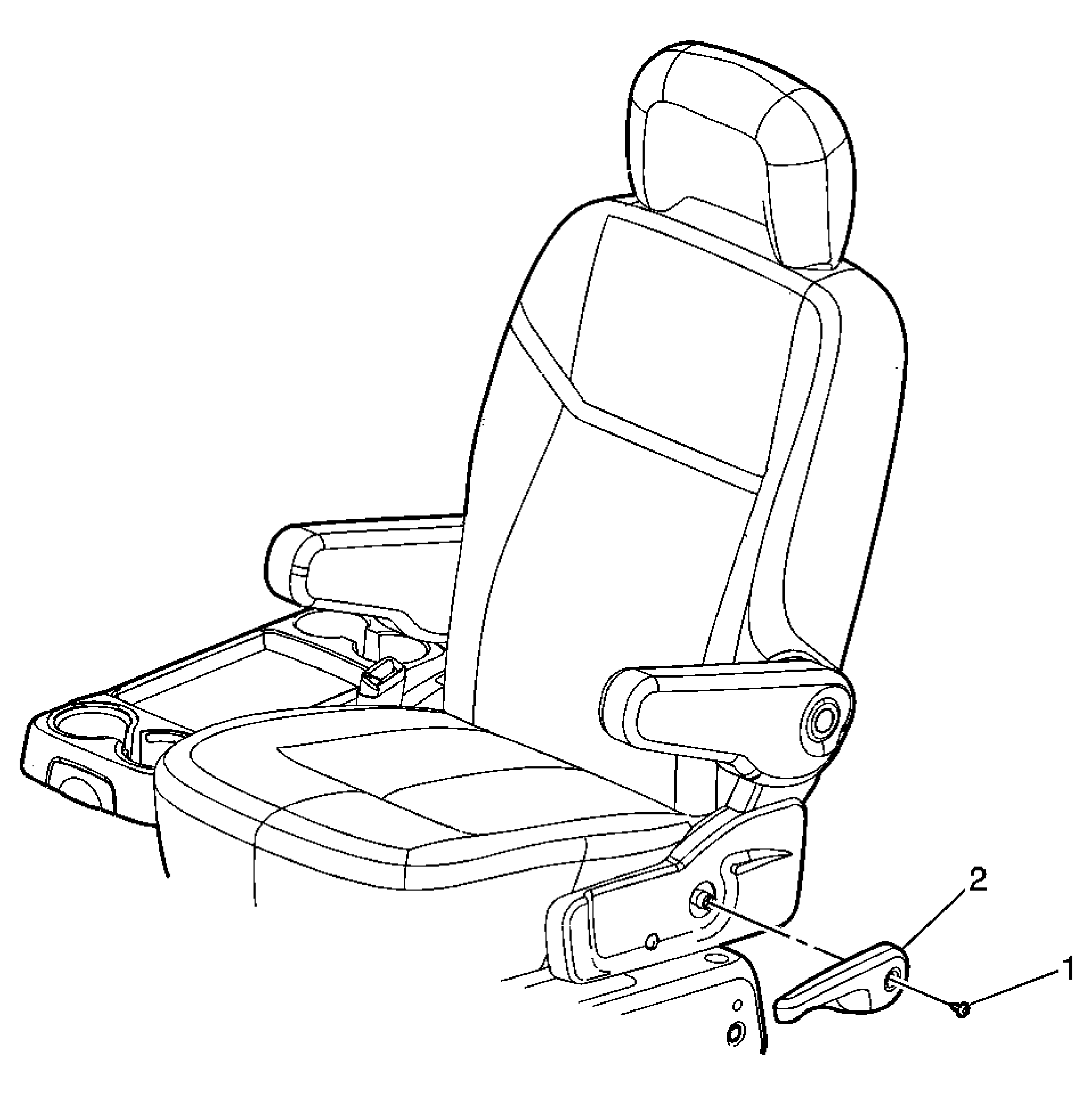

Fig 1: Identifying Seat Back Recliner Handle

Courtesy of GENERAL MOTORS CORP.

Driver Seat Recliner Handle and Passenger Seat Recliner Handle Replacement

Callout	Component Name
1	Seat Recliner Handle Screw NOTE: Refer to Fastener Notice . Tighten:  2 N.m (18 lb in)
2	Seat Recliner Handle
