Front Seat Frame Assembly Replacement - Driver
Front Seat Frame Assembly Replacement - Driver

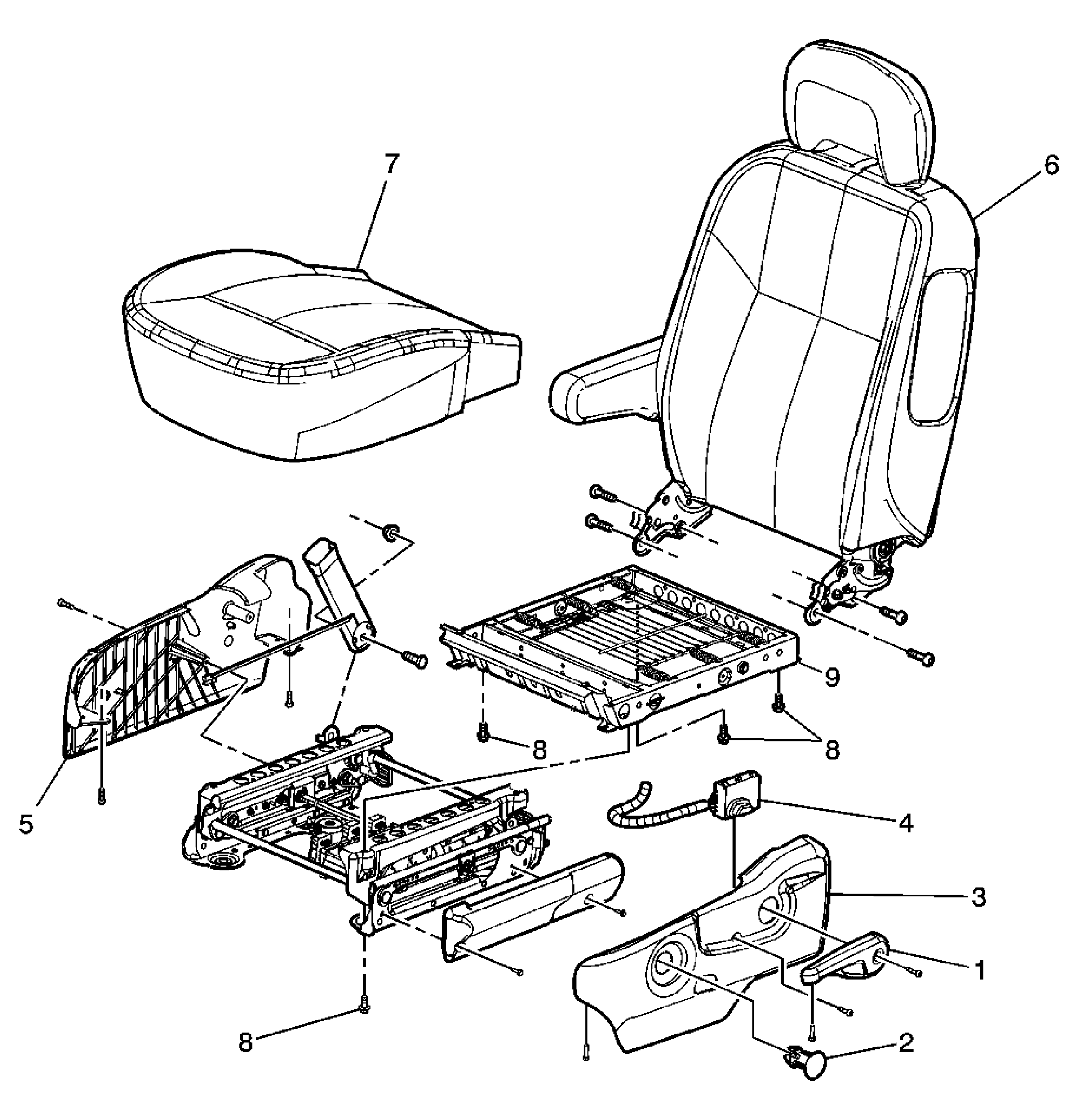

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bucket seat. Refer to Front Seat Replacement - Bucket . |
|
| 1 | Seat Recliner Handle Refer to Driver Seat Recliner Handle and Passenger Seat Recliner Handle Replacement . |
| 2 | Seat Recliner Handle Plug |
| 3 | Seat Outer Adjuster Panel Refer to Front Seat Adjuster Track Finish Cover Replacement . |
| 4 | Power Seat Adjuster Switch Refer to Power Seat Switch Replacement . |
| 5 | Seat Inner Adjuster Cover Refer to Front Seat Adjuster Track Finish Cover Replacement . |
| 6 | Seat Back Assembly Refer to Front Seat Back Replacement . |
| 7 | Seat Cushion Assembly Refer to Seat Cushion Cover and Pad Replacement - Front . |
| 8 | Power Seat Adjuster Bolt (Qty: 4)
NOTE:
Refer to Fastener Notice
.
Tighten: 45 N.m (33 lb ft) |
| 9 | Seat Cushion Frame Assembly |
