Rear Quarter Lower Trim Panel Replacement (Monte Carlo)

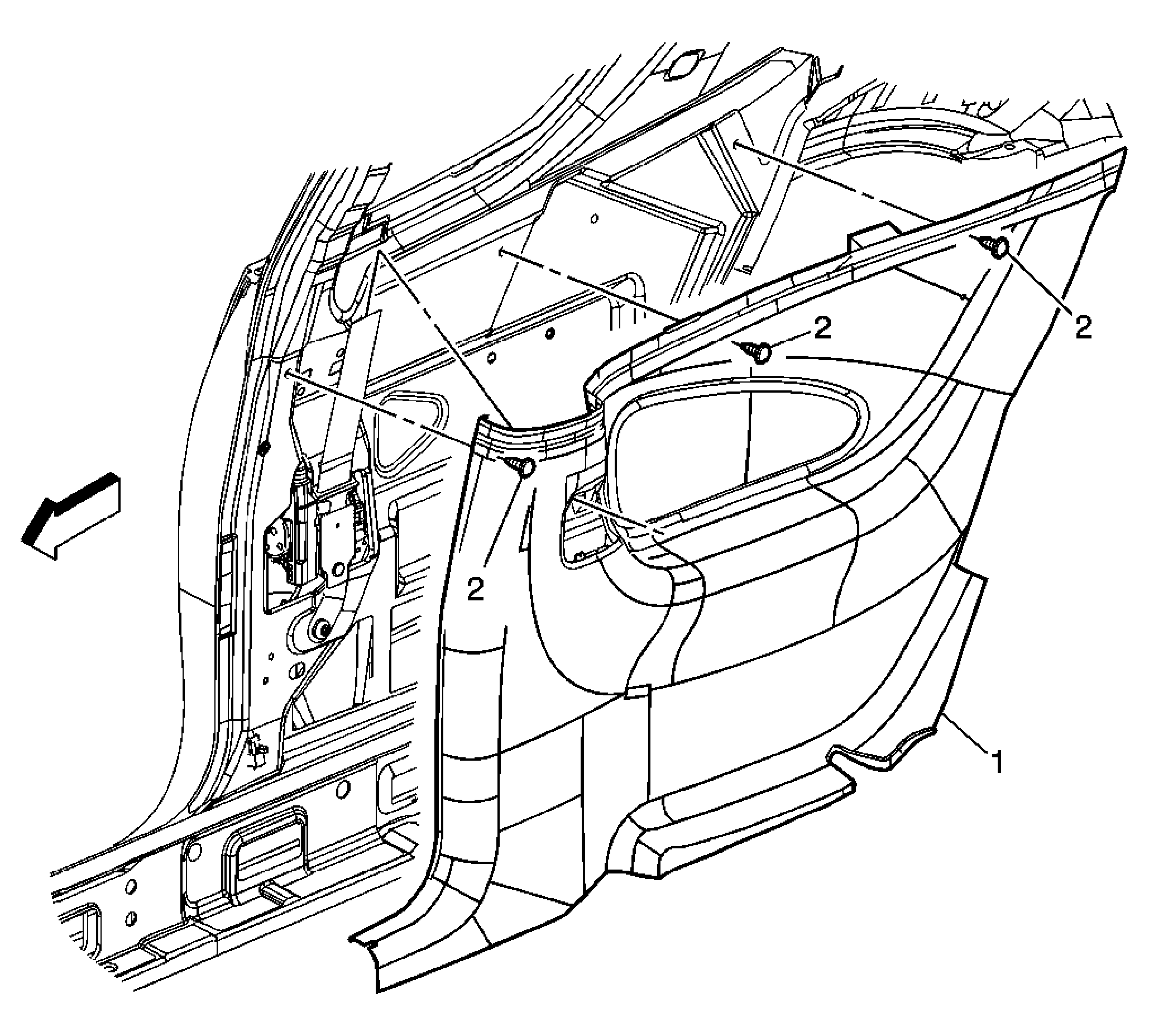

Fig 1: Identifying Rear Quarter Lower Trim Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the rear seat cushion and back. Refer to Rear Seat Cushion Replacement (Impala) or Rear Seat Cushion Replacement (Monte Carlo) and Seat Back Replacement - Rear (Impala) or Seat Back Replacement - Rear (Monte Carlo) . Remove the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement (Impala) or Rear Quarter Upper Trim Panel Replacement (Monte Carlo) .
1	Quarter Lower Trim Finish Panel Assembly Tip: Route the front seat belt through the trim panel.
2	Quarter Lower Trim Finish Panel Retainer (Qty: 3) Tip: Right side shown has 3 retainers, the left side is similar but has 4 retainers.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Quarter Lower Trim Finish Panel Assembly
Tip: Route the front seat belt through the trim panel.

Quarter Lower Trim Finish Panel Retainer (Qty: 3)
Tip: Right side shown has 3 retainers, the left side is similar but has 4 retainers.
