Rear Seat Cushion Replacement (Impala)

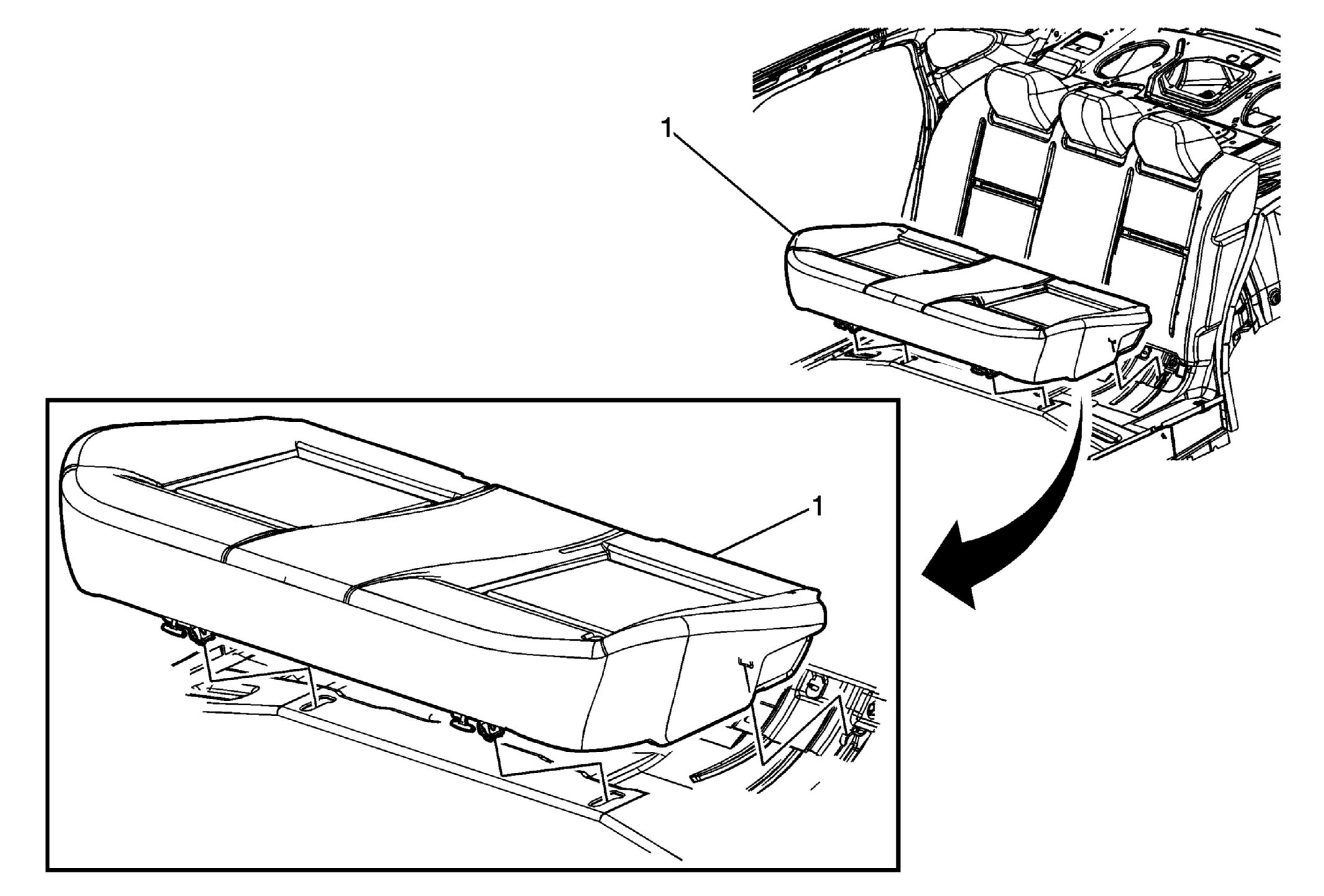

Courtesy of GENERAL MOTORS CORP. Rear Seat Cushion Replacement (Impala)
| Callout |
Component Name |
| 1 |
Cushion Assembly, Rear Seat
Tip:
- Reach under the seat cushion and locate both the left and the right "T" handles.
- Press down on the seat and pull the handles to release the seat retainer.
- Remove the seat cushion by lifting the cushion up and pulling the cushion outward from the seat back.
|
