Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Utility Stand
    GM333118Courtesy of GENERAL MOTORS CORP.
  1. Lower the vehicle on to the frame.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the front frame bolts, then tighten the bolts to 155 N.m (114 lb ft).
    3. Fig 2: Identifying Frame Reinforcements
    GM1874266Courtesy of GENERAL MOTORS CORP.
  3. Install the frame reinforcements. Refer to Drivetrain and Front Suspension Frame Reinforcement Replacement (2.4L LE5 and 2.4L LAT)  or Drivetrain and Front Suspension Frame Reinforcement Replacement (3.5L LZ4, 3.6L LY7 and 3.6L LSC) .
  4. Raise the vehicle off of the J 39580  .
    5. Fig 3: Rear Transmission Mount To Bracket Retaining Nut
    GM2159318Courtesy of GENERAL MOTORS CORP.
  5. Install the rear transmission mount to bracket retaining nut (1), then tighten the nut to 100 N.m (74 lb ft).
    6. Fig 4: Front Transmission Mount Retaining Bolts
    GM2159313Courtesy of GENERAL MOTORS CORP.
  6. Install the front transmission mount to frame retaining bolts (1), then tighten the bolts to 76 N.m (56 lb ft).
    7. Fig 5: Steering Shaft Coupling
    GM2159877Courtesy of GENERAL MOTORS CORP.
  7. Install the steering shaft coupling (1) to the steering gear. Refer to Steering Shaft Coupling Replacement .
  8. Install the four EBCM bolts, then tighten the bolts to 40 N.m (30 lb ft)

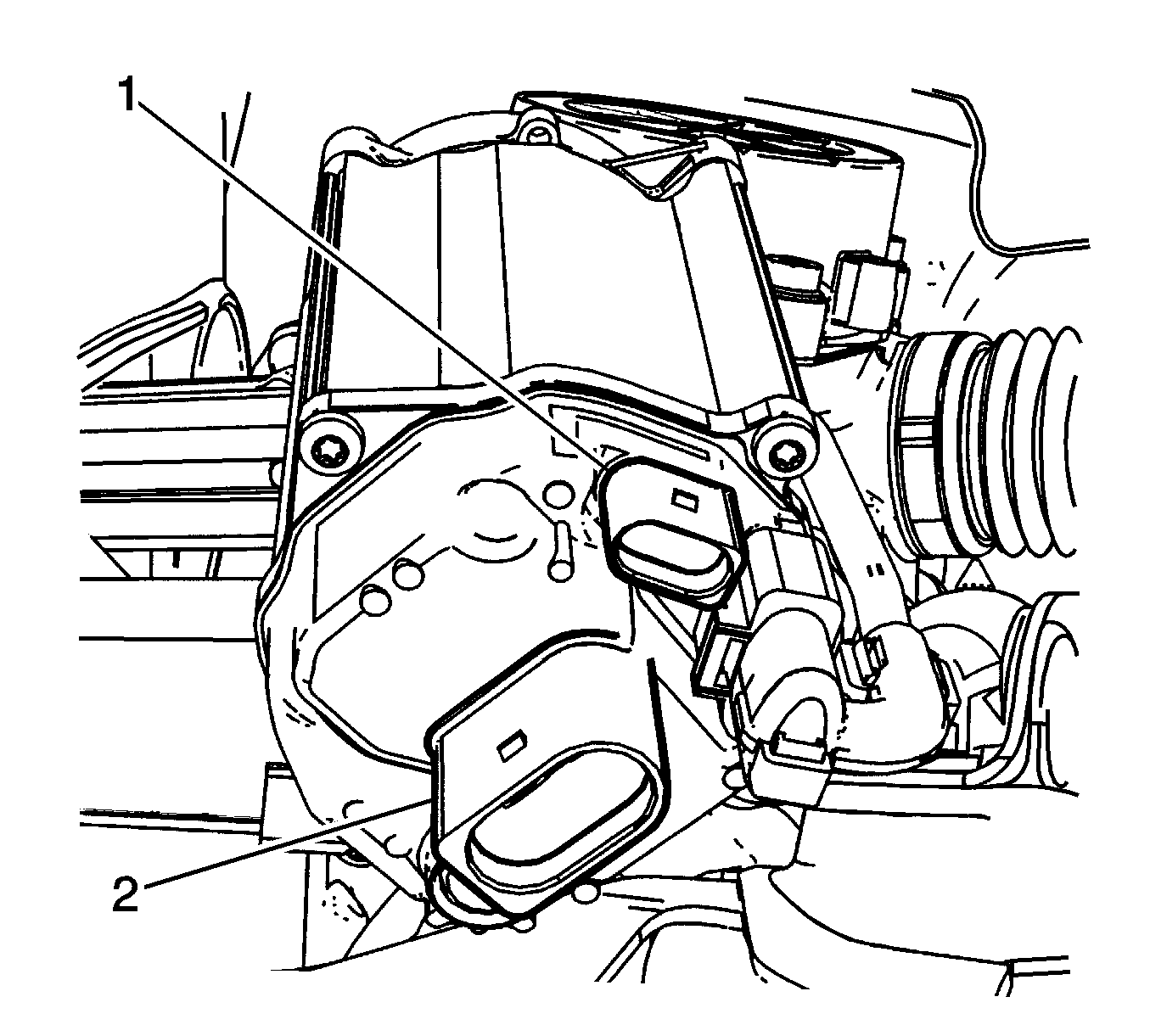

    9. Fig 6: power steering rack electrical connectors
    GM2159879Courtesy of GENERAL MOTORS CORP.
  9. Connect the two power steering rack electrical connectors (1, 2).
  10. Install the steering gear electric motor ground strap to the underbody.
    11. Fig 7: Identifying Lower Ball Joints
    GM1873841Courtesy of GENERAL MOTORS CORP.
  11. Install the lower ball joints to the steering knuckles. Refer to Lower Control Arm Replacement .
  12. Connect both left and right stabilizer links. Refer to Stabilizer Shaft Insulator Replacement .
  13. Connect the outer tie rod ends to the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement
  14. Install the front catalytic converters. Refer to Catalytic Converter Replacement - Left Side (LZ4) or Catalytic Converter Replacement - Left Side (LY7 ) or Catalytic Converter Replacement - Left Side (LCS) and Catalytic Converter Replacement - Right Side (LZ4) or Catalytic Converter Replacement - Right Side (LY7) or Catalytic Converter Replacement - Right Side (LCS) .
  15. Install the air deflector to the frame. Refer to Front Bumper Fascia Air Deflector Replacement .
  16. Install the engine splash shields. Refer to Engine Splash Shield Replacement .
  17. Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
  18. Remove the engine support fixture. Refer to Engine Support Fixture
    19. Fig 8: View Of Cooling Module Secured To Upper Body Structure
    GM857193Courtesy of GENERAL MOTORS CORP.
  19. Release the radiator, air conditioning condenser, and fan module assembly from the upper tie bar.
  20. Install the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement .
  21. Enable the hybrid high voltage system. Refer to High Voltage Enabling .
  22. Connect the 12 volt battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (HP5) .
  23. Check the wheel alignment. Refer to Wheel Alignment Measurement .
