Battery Negative Cable Disconnection and Connection (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

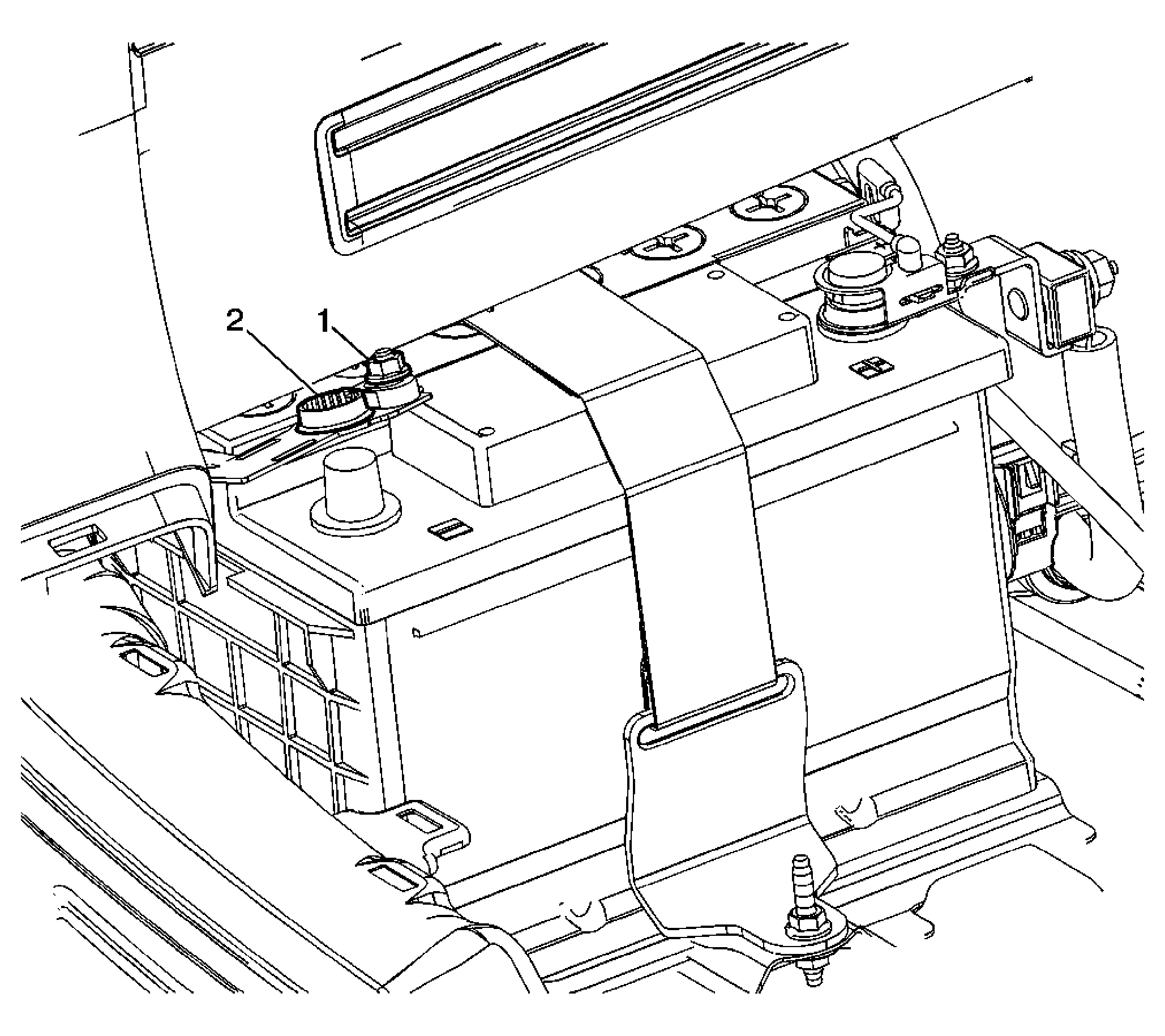

Fig 1: Battery Negative Cable Disconnection and Connection (HP5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Unless directed otherwise, the ignition and start switch must be in the OFF or LOCK position, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components. Preliminary Procedures Turn on the radio and record all of the radio station presets. Ensure all lamps and accessories are turned off. Ensure the ignition switch is in the OFF position, and remove the ignition key. Remove the battery cover. Refer to Battery Cover Replacement (HP5) .
1	Nut CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (45 lb in)
2	Negative Battery Cable Terminal

Callout

Component Name

WARNING: Unless directed otherwise, the ignition and start switch must be in the OFF or LOCK position, and all electrical loads must be OFF before servicing any electrical component. Disconnect the negative battery cable to prevent an electrical spark should a tool or equipment come in contact with an exposed electrical terminal. Failure to follow these precautions may result in personal injury and/or damage to the vehicle or its components.

Preliminary Procedures

Turn on the radio and record all of the radio station presets.
Ensure all lamps and accessories are turned off.
Ensure the ignition switch is in the OFF position, and remove the ignition key.
Remove the battery cover. Refer to Battery Cover Replacement (HP5) .

Nut

CAUTION: Refer to Fastener Caution .

Tighten: 5 N.m (45 lb in)

Negative Battery Cable Terminal
