Steering Linkage Outer Tie Rod Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

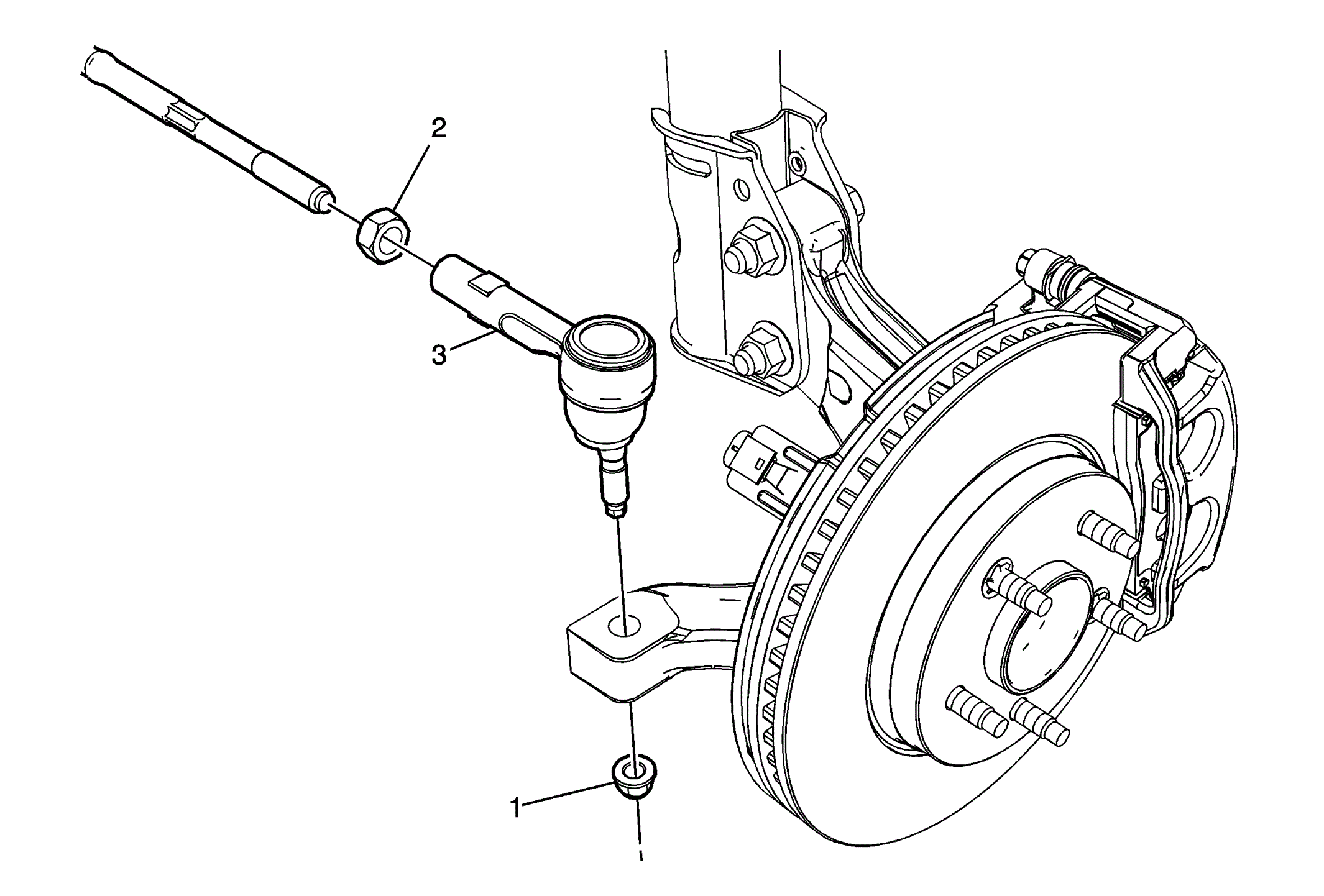

Fig 1: View Of Rack and Pinion Outer Tie Rod End

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front tire/wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Steering Linkage Outer Tie Rod Nut CAUTION: Refer to Fastener Caution . Procedure Prior to re-installing the steering linkage outer tie rod nut use installer J 44015 to seat the steering linkage outer tie rod in the steering knuckle. Tighten installer J 44015 to 40 N.m (30 lb ft) and then remove. Tighten: 25 N.m (18 lb ft) + 90 degrees.
2	Steering Linkage Inner Tie Rod Nut Procedure: Mark the location of the steering linkage inner tie rod nut and loosen it. Tighten: 60 N.m (44 lb ft).
3	Steering Linkage Outer Tie Rod Procedure Use the separator SA91100C to separate the steering linkage outer tie rod from the steering knuckle. See Special Tools . Inspect the steering linkage inner tie rod for bent or damaged threads. Clean the tapered surface of the steering knuckle. Lubricate the tie rod threads with chassis lubricant. Refer to Fluid and Lubricant Recommendations (USA and Canada) . Adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment . Tip: Do not free the steering linkage outer tie rod from the steering knuckle by use of a pickle fork or a wedge type tool. Damage to the steering linkage outer tie rod seal may result. Special Tools SA91100C Tie Rod Separator. See Special Tools . J 44015 Steering Linkage Installer
