Front Bumper Fascia Air Deflector Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

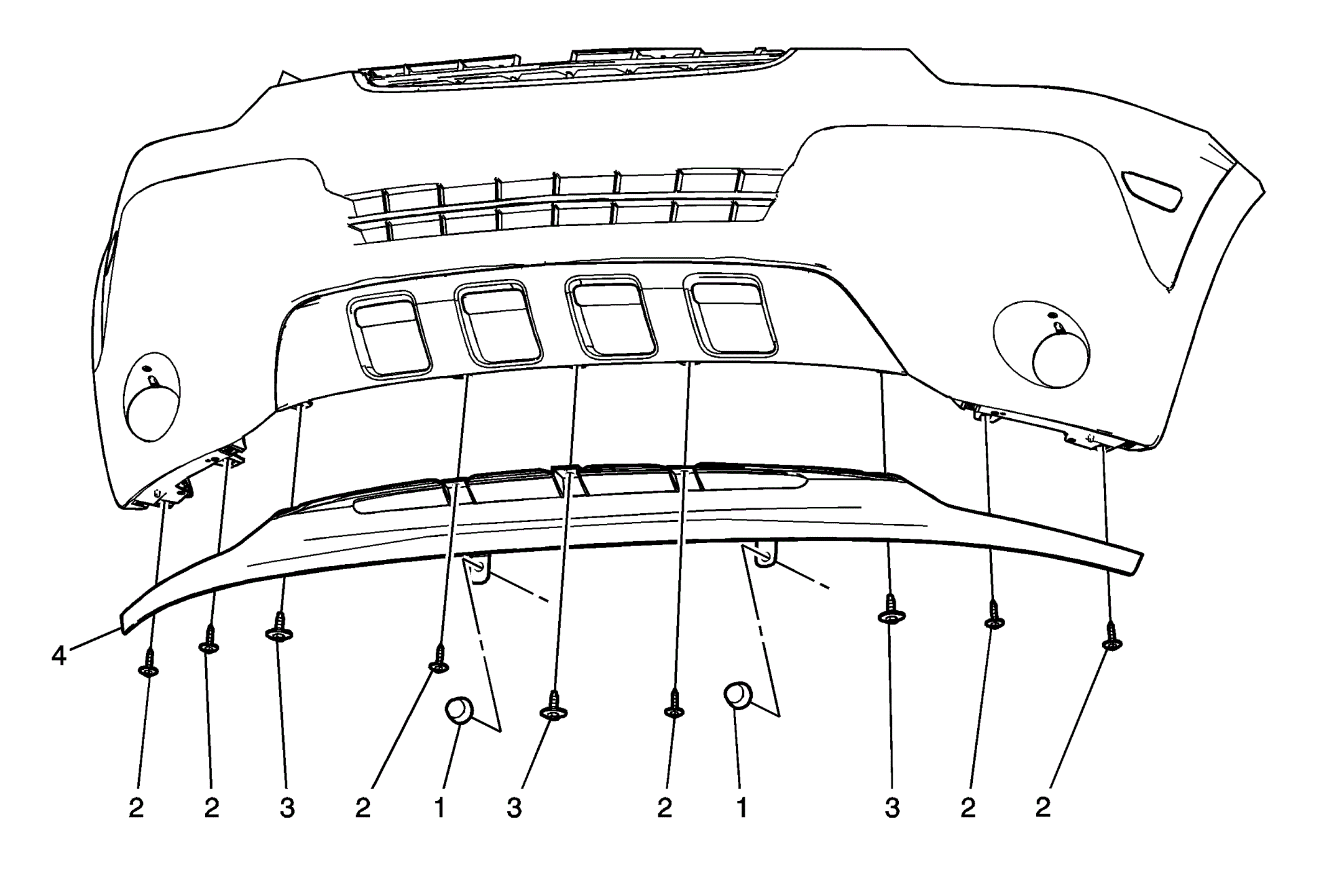

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Bumper Air Deflector Plastic Retainer (Qty: 2) |
| 2 | Front Bumper Air Deflector Bolt/Screw (Qty: 6)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 3 | Front Bumper Air Deflector Bolt/Screw (Qty: 3) Tighten: 2 N.m (18 lb in) |
| 4 | Front Bumper Air Deflector |
