Drivetrain and Front Suspension Frame Reinforcement Replacement (3.5L LZ4, 3.6L LY7 and 3.6L LSC)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

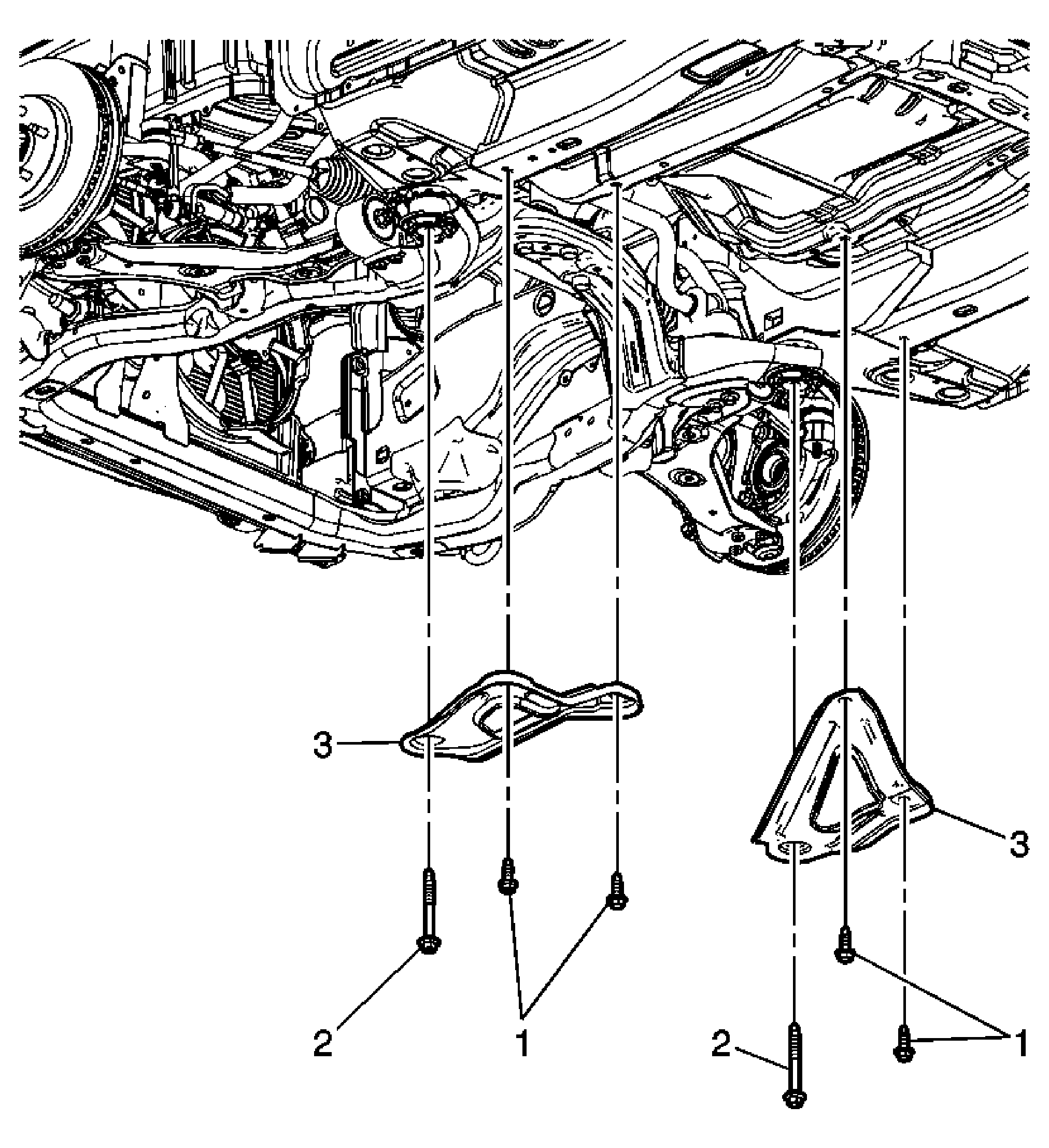

Fig 1: Identifying Drivetrain & Front Suspension Frame Reinforcement (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove exhaust hanger from frame reinforcement, if equipped. Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Support the rear of the frame with a utility stand.
1	Reinforcement Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 100 N.m (74 lb ft)
2	Frame Bolt (Qty: 2) Tighten: 155 N.m (114 lb in)
3	Reinforcement (Qty: 2)
