Drivetrain and Front Suspension Frame Reinforcement Replacement (2.4L LE5 and 2.4L LAT)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

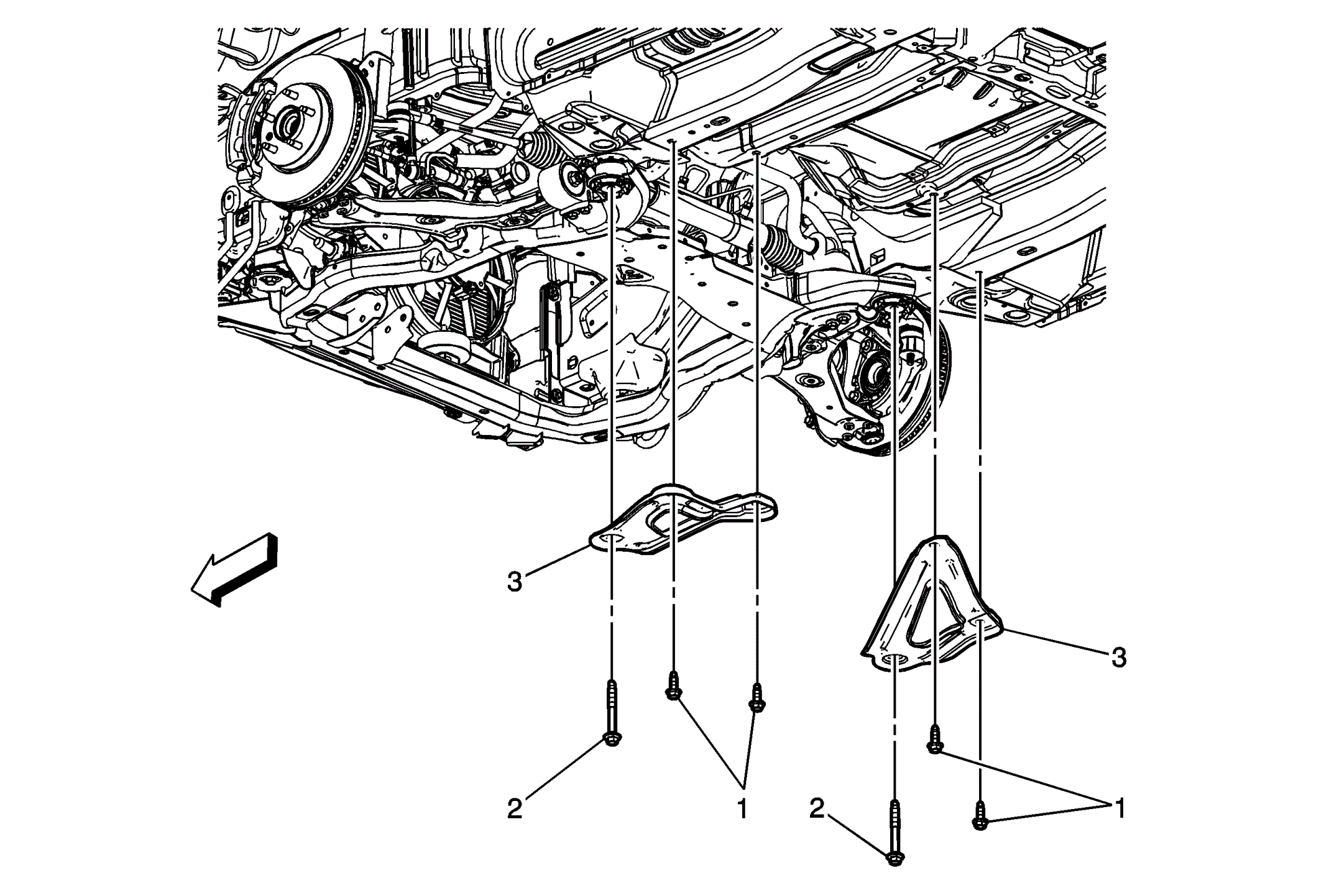

Fig 1: Identifying Drivetrain & Front Suspension Frame Reinforcement (LNJ)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Support the rear of the frame with a utility stand.
1	Reinforcement Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 100 N.m (74 lb ft)
2	Frame Bolt (Qty: 2) Tighten: 155 N.m (114 lb ft)
3	Reinforcement (Qty: 2)
