Radiator Opening Upper Cover Replacement
Radiator Opening Upper Cover Replacement
WARNING:
This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

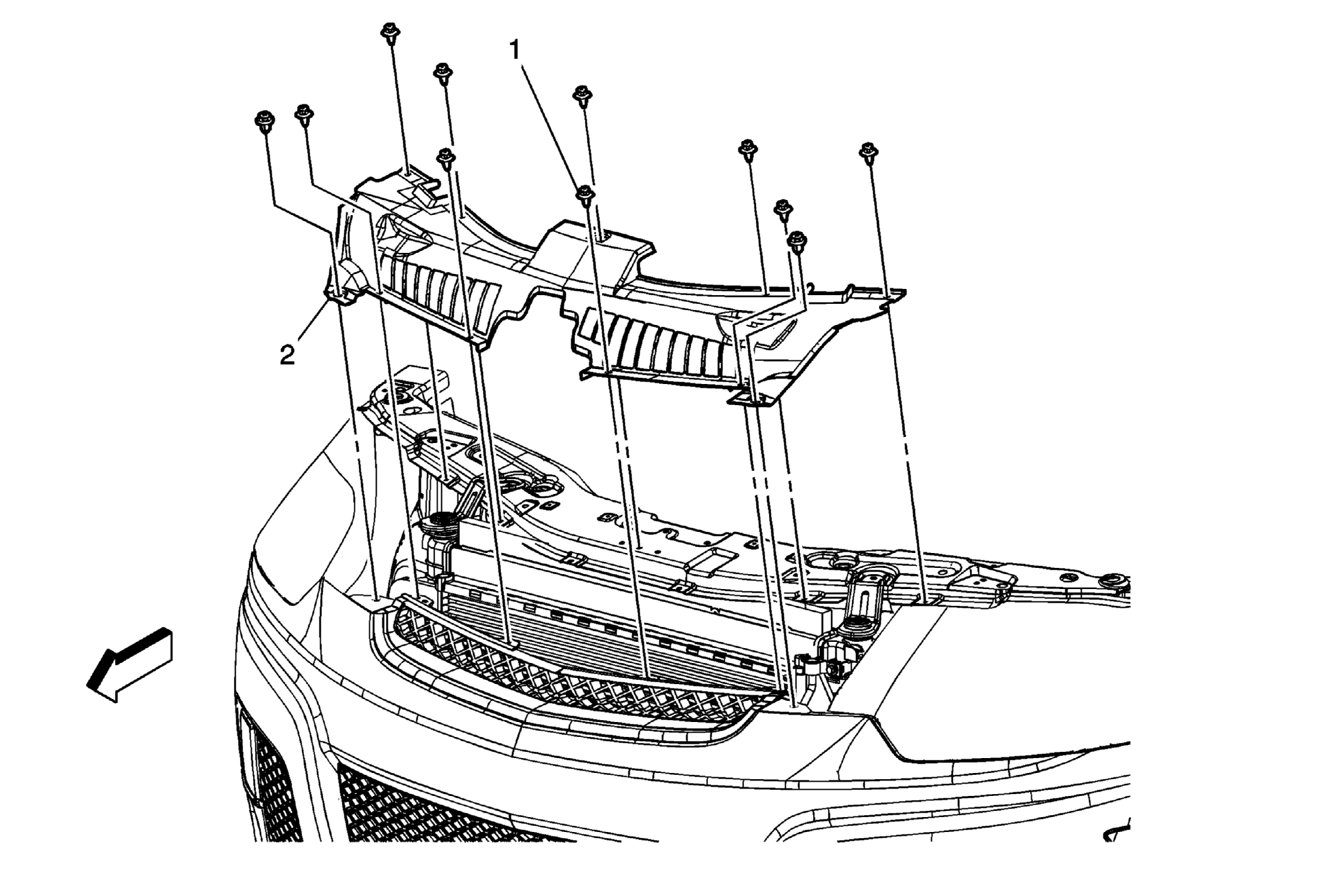

Fig 1: Radiator Opening Upper Cover Replacement
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Radiator Opening Upper Cover Plastic Retainer (Qty: 11)
2
Radiator Opening Upper Cover
