Removing the left engine support bracket
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE LATERAL HOOD SEALS .
- Refer to REMOVING THE SIDE PANEL SEAL .
- Refer to RELEASING THE WIRING HARNESS SECTION ON THE LEFT SHOCK TOWER .
- Refer to RELEASING THE WIRING HARNESS SECTION AT THE RIGHT SHOCK TOWER .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to MOVE THE ENGINE TO THE INSTALLATION POSITION .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to REMOVING THE CONTROL UNIT HOLDER .

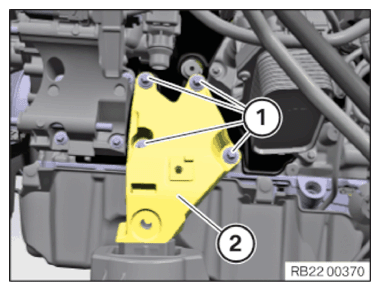

- Loosen screws (1) .
- Remove engine mounting bracket (2) .
Follow-up work
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
- Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
- Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
- Refer to INSTALLING THE SIDE PANEL SEAL .
- Refer to INSTALLING THE LATERAL HOOD SEALS .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
