Removing the control unit holder
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .

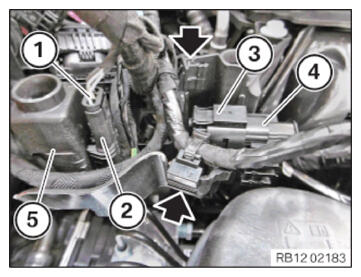

- Unlock plug connection (1) and disconnect.
- Unlock the plug connection (2) and disconnect it from the control unit bracket (5).
- Unlock plug connection (3) and disconnect.
- Unlock plug connection (4) and disconnect it from control unit bracket (5).
- Release the clamps (arrows).

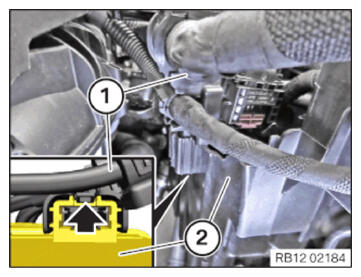

- Unlock the lock (arrow).
- Disconnect the cable holder (1) upwards from the control unit holder (2).

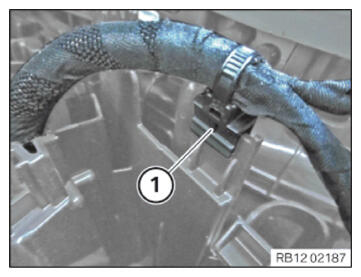

- Loosen clamp (1).

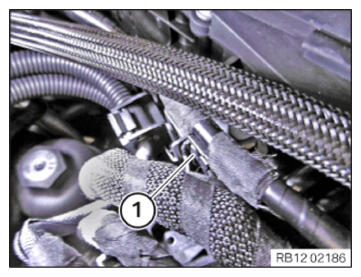

- Loosen clamp (1).

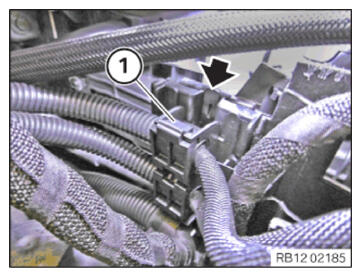

- Unlock the lock (arrow).
- Feed out the cable clip (1) upwards and set it aside.

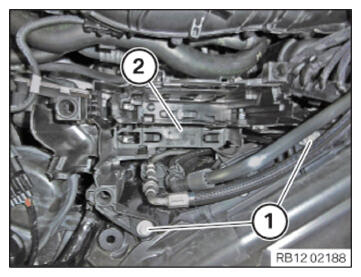

- Loosen screws (1).
- Guide out and remove the control unit holder (2).
