Preparing the replacement transmission

Preliminary work

Refer to DEACTIVATING ELECTRICAL SYSTEM .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to REMOVING THE FRONT ACOUSTIC COVER FOR THE ENGINE .
Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
Refer to REMOVING STIFFENING STRUT .
Refer to REMOVING COMPLETE EXHAUST SYSTEM .
Refer to REMOVING STARTER MOTOR .
Refer to REMOVING THE HEAT SHIELDS .
Refer to PARTIALLY LOOSENING THE PROP SHAFT .
Refer to REMOVING THE RETAINING PLATES .
Refer to REMOVING EXHAUST SYSTEM HOLDER .
Refer to DISCONNECTING HYDRAULIC LINES ON THE TRANSMISSION .
Refer to DETACHING TRANSMISSION CROSS MEMBER .
Refer to REMOVING AUTOMATIC TRANSMISSION (GA8HP51Z) .

CAUTION: Materials harmful to health .
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: RISK OF DAMAGE
Damage to the transmission .
Damage to the transmission due to unapproved transmission oil .

Use only the approved transmission oil.
Check the transmission oil level after completing the repair.

NOTE: TECHNICAL INFORMATION
Replacement transmissions come filled with oil

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

NOTE: TECHNICAL INFORMATION
After completion of the work, program the control unit for the electronic gearbox control (EGS).

NOTE: TECHNICAL INFORMATION
When installing a new or replacement transmission, flush the transmission oil cooler and lines.

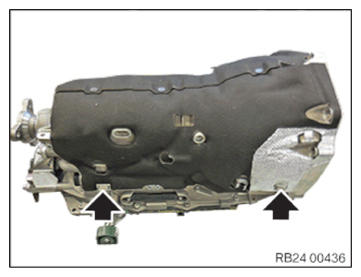

Replace clamps (arrows) of sound insulation on the right.
Parts: Clamps
Remount the sound insulation on the right.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace clamps (arrows) of sound insulation on the left.
Parts: Clamps
Remount the sound insulation on the left.

NOTE: TECHNICAL INFORMATION

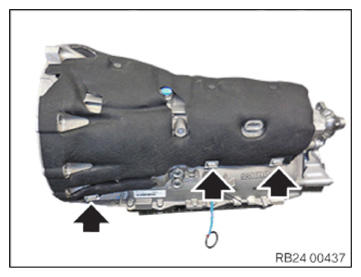

After disassembling the transportation retainer, secure the torque converter against slipping out.

G14193138

Courtesy of BMW OF NORTH AMERICA, INC.

Disassemble transportation retainers.
Remount all cable clips.
Remount all seal plugs.
Remount protective cap on output shaft.
Remount exhaust bracket.
Remount transmission mounting bracket.
If installed: Remount transfer box.
Make note of transmission identification (see BMW Group parts sales and nameplate).

Follow-up work

Refer to INSTALLING THE AUTOMATIC TRANSMISSION (GA8HP51Z) .
Refer to INSTALLING TRANSMISSION CROSS MEMBER .
Refer to SECURING THE HYDRAULIC LINES TO THE TRANSMISSION .
Refer to INSTALLING THE EXHAUST BRACKET .
Refer to INSTALLING THE RETAINING PLATES .
Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
Refer to INSTALLING THE HEAT SHIELD .
Refer to INSTALLING STARTER MOTOR .
Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
Refer to ACTIVATING ELECTRICAL SYSTEM .
Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
Refer to INSTALLING REINFORCEMENT STRUT .
Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to INSTALLING ACOUSTIC COVER .
