Remove complete exhaust system
NOTE:
TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.
Preliminary work
- Refer to REMOVING TANK COVER ON LEFT AND RIGHT .
- Refer to REMOVING STIFFENING STRUT .
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Component with heavy weight.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component.
Heavy components can lead to injury or damage.
Heavy components can lead to injury or damage.
- Remove and install heavy components with the aid of another person/other persons.
- Variant with ribbon clamp:
Detach the ribbon clamp (1).
- Variant with V-clip:
Release the V-ribbon clip (1).

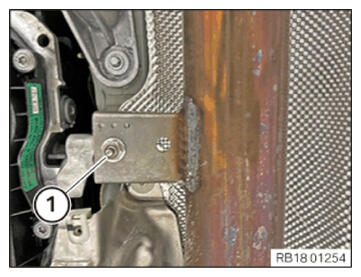

- Loosen nut (1).
- Release the nut (1) on the rear axle support.NOTE: The following step(s) must be performed if the listed component(s) is/are installed.
- Unlock plug connection (2) and disconnect.
- Unscrew the nuts (arrows).
- Lower the exhaust system (1) with the help of a support person and remove it.
