Installing starter motor

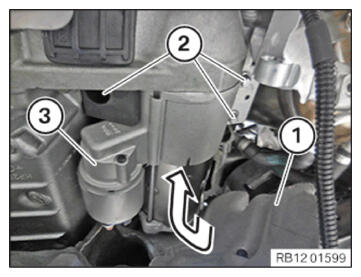

• Make sure that the acoustic cover (1) is not damaged.
• Carefully push the acoustic cover (1) aside.
• Insert and install the starter (3) in the direction of the arrow.
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Starter motor to engine
  M8X60	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

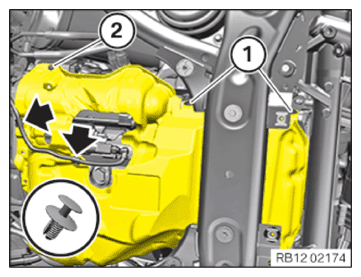

• Position the acoustic cover (2).
• Fasten expanding rivet (1).
• Secure clamps (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

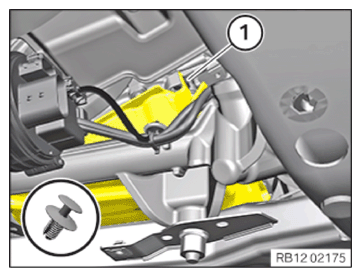

• Fasten expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

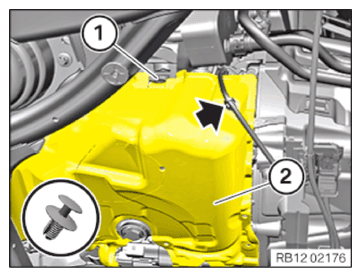

• Fasten the Christmas tree clip (2).
• Secure expanding rivet (1).
• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

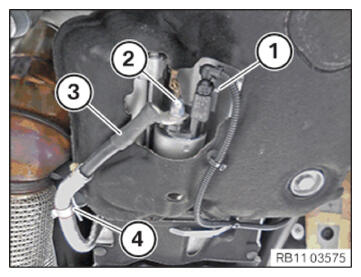

• Fasten positive battery cable (3) in holder (4) and position it on the starter motor.
• Tighten the nut (2) hand-tight.
• Connect connectors (1) and lock audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

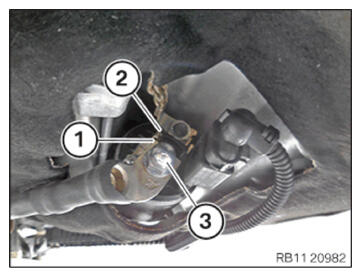

  CAUTION: Improper routing of the positive battery cable  .
  Risk of short circuits!

  • Route the positive battery cable without abrasions and do not trap.
• Correctly  attach the positive battery cable (1) to the anti-twist lock (2).
• Tighten the nut (3).
  TIGHTENING TORQUES SPECIFICATION



  Battery positive lead to starter
  M8	Tightening torque	13.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to ACTIVATING ELECTRICAL SYSTEM .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
