Install the exhaust bracket

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

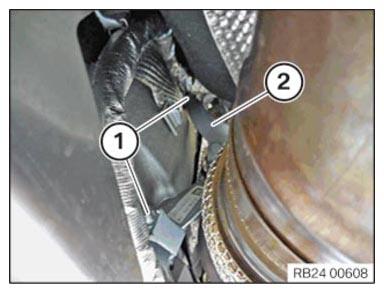

Install the exhaust bracket (2).

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

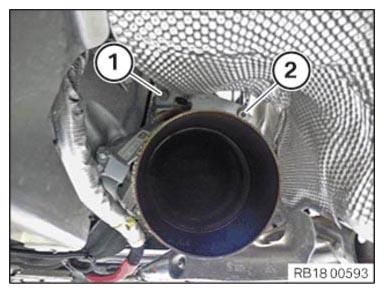

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Catalytic converter to holder
M8 Replace screw.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2).
Version B:

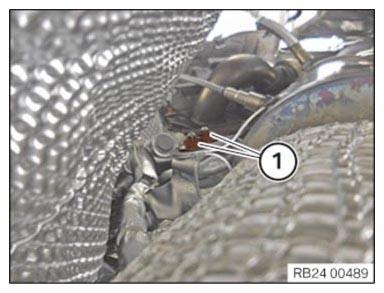

Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

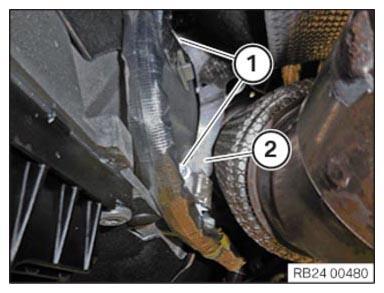

Install the exhaust bracket (2).

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

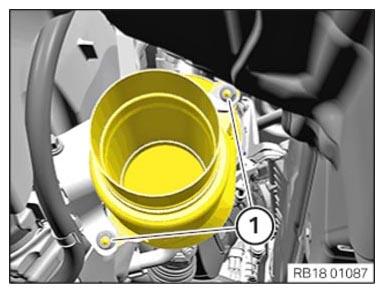

Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Catalytic converter to holder
M8 Nut Replace nut.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install the exhaust bracket (2).

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version A:

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Catalytic converter to holder
M8 Replace screw.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2).
Version B:
Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
