Remove exhaust system holder
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

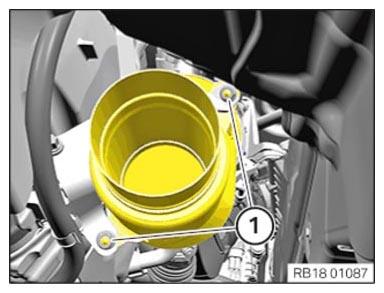

- Version A:
Loosen screw (1).
Loosen nut (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

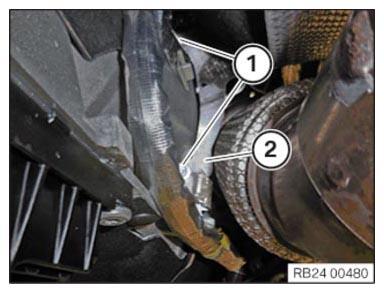

- Version B:
Release nuts (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

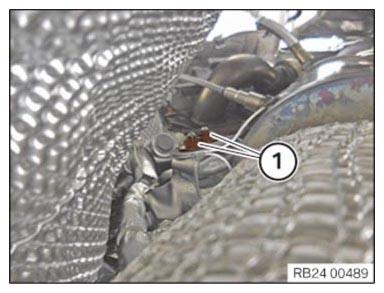

- Loosen screws (1).
- Remove the exhaust bracket (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

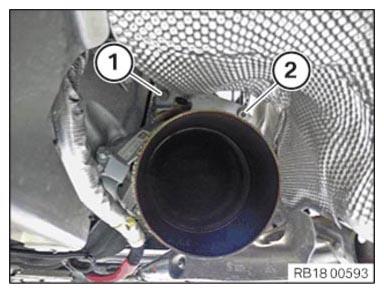

- Loosen nuts (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
- Loosen screws (1).
- Remove the exhaust bracket (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
