Securing the hydraulic lines to the transmission
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Replace sealing rings.
Parts: Sealing ring

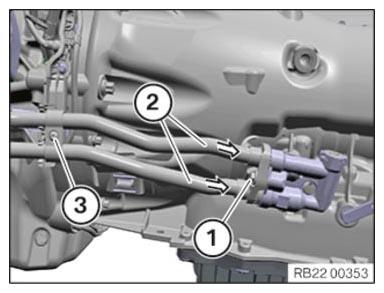

- Install hydraulic lines (2) on transmission in arrow direction.
- Position and tighten the screw (1).TIGHTENING TORQUES SPECIFICATION
Transmission oil line to transmission M6x25 Replace the sealing ring. tightening torque 8 Nm - Position and tighten the screw (3).TIGHTENING TORQUES SPECIFICATION
Transmission oil line on holder M6 Tightening torque 4 Nm
