Install wheel carrier

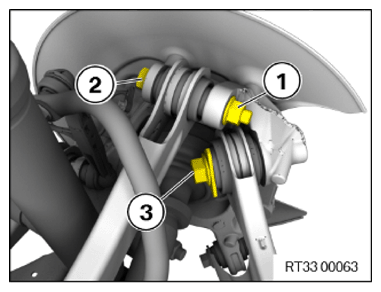

• Position the wheel carrier.
• Replace nut (1).

  Parts:  Nut

• Replace screws (2) and (3).

  Parts:  Screws

• Insert the screw (2).
• Tighten the nut (1) hand-tight.
• Tighten the screw (3) hand-tight.

  The threaded connections are tightened later in NORMAL POSITION .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE CAMBER CONTROL ARM AND TRAILING ARM TO THE WHEEL CARRIER .
• Refer to INSTALLING THE REAR BRAKE DISC .
• Refer to FASTENING THE ANTI-ROLL BAR LINK AND WHEEL SPEED SENSOR TO THE WHEEL CARRIER .
• Refer to ATTACHING THE CONTROL LINK TO THE WHEEL CARRIER .
• Refer to SECURING THE BRAKE CALIPER .
• Refer to FASTENING THE OUTPUT SHAFT ON THE WHEEL BEARING .
• Refer to INSTALLING REAR LEFT OR RIGHT WHEEL .
• Refer to MEASURING THE RIDE HEIGHT OF THE REAR AXLE AND SETTING THE NORMAL POSITION .
• Refer to TIGHTENING THE SCREW CONNECTIONS ON THE WHEEL CARRIER .
• Refer to PERFORM CHASSIS ALIGNMENT CHECK .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM .
