Fasten the output shaft on the wheel bearing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Installation notes for spur gearing must be observed without fail.
Installation notes for spur gearing must be observed without fail.
- Replace the collar screw (1) and compression spring (2).

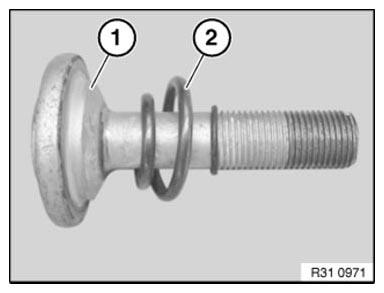

Parts: Collar screw and compression spring
- Note installation position of compression spring (2).
- Keep the collar screw (1) and the front gearing of the wheel bearing and the prop shaft clean and free of grease.

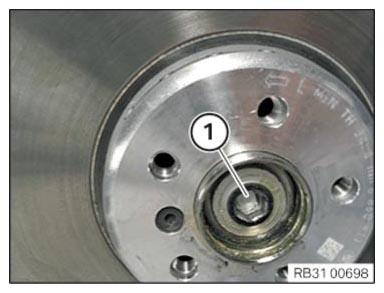

- Hand-tighten the collar screw (1) with the compression spring.NOTE: TECHNICAL INFORMATION
The front gearing of wheel bearing and driven shaft must be installed with a positive fit (tooth in tooth position). - Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).
- Press brake pedal.
- Tighten the collar screw.TIGHTENING TORQUES SPECIFICATION
Output shaft to wheel bearing M16
Replace the collar screw.Snug torque 210 Nm Angle of rotation 90°
NOTE:
TECHNICAL INFORMATION
Installation notes for spur gearing must be observed without fail.
Installation notes for spur gearing must be observed without fail.
- Replace the collar screw (1) and compression spring (2).
Parts: Collar screw and compression spring
- Note installation position of compression spring (2).
- Keep the collar screw (1) and the front gearings of the wheel bearing and the output shaft clean and free of grease.

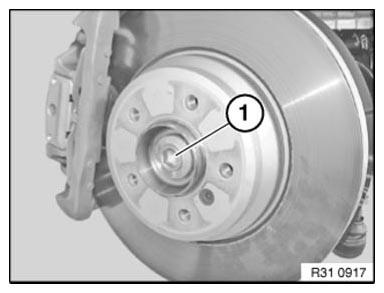

- Hand-tighten the collar screw (1) with the compression spring.NOTE: TECHNICAL INFORMATION
The front gearing of wheel bearing and driven shaft must be installed with a positive fit (tooth in tooth position). - Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).
- Press brake pedal.
- Tighten the collar screw.
TIGHTENING TORQUES SPECIFICATION
| Output shaft to wheel bearing | ||
| M16 Replace collar screw and spring. |
Snug torque | 210 Nm |
| Angle of rotation | 90° | |
