Attaching the camber control arm and trailing arm to the wheel carrier

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

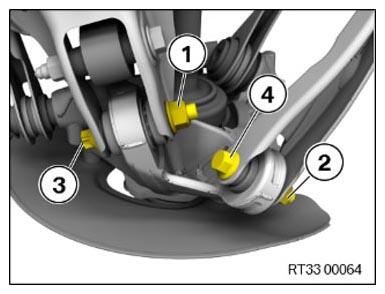

Replace the nuts (1) and (2) and the screws (3) and (4).
Parts: Nut and screws
Position the camber control arm and trailing arm on the wheel carrier.
Insert screws (3) and (4).

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Camber control arm to wheel carrier
M14 Replace screw and nut.	Joining torque	165 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the normal position.

Tighten the nut (2) hand-tight.
The screw connection is tightened later in normal position.
