Securing the brake caliper

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

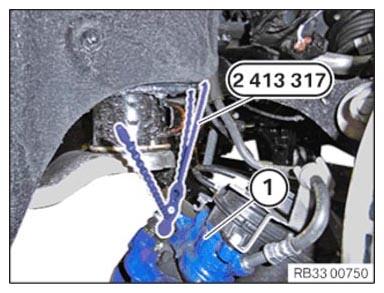

Release and remove special tool 2 413 317 .
The brake caliper must not hang on the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.

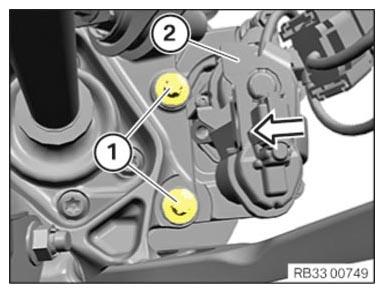

Position the brake caliper (2) in the arrow direction.
Replace screws (1).
Parts: Screws

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Brake anchor plate to rear wheel carrier
M12 Replace screw.	Tightening torque	130 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

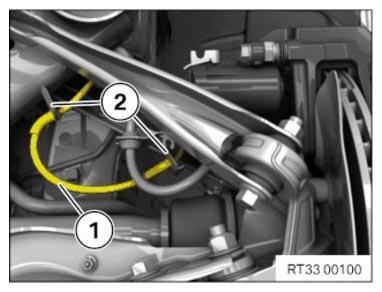

Attach the cable for the parking brake (1) to the holders (2).
NOTE: Only perform the operation on the right side.
Attach the cable for the brake pad wear indicator to the rear axle support.
