Installing the rear brake disc

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion if necessary.
Irregularities in the contact surface can cause distortion in the brake disc!

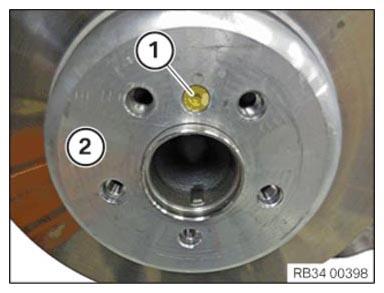

Position the brake disc (2).
Replace the screw (1).
Parts: Screw

Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Brake disc to rear wheel hub
M8 Replace screw.	Tightening torque	16 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
