Measuring the ride height of the rear axle and setting the normal position

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Put the vehicle on its wheels (for example, on a ramp).

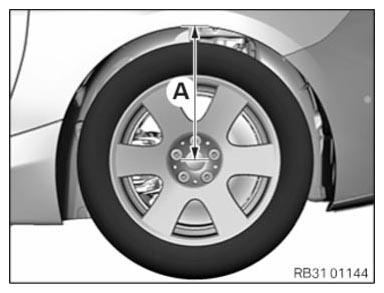

Measure the ride height (A).

Load or unload the vehicle until the ride height (A) is within the tolerance.

TECHNICAL DATA SPECIFICATION

G42 rear wheel drive, standard suspension
Measured from center of wheel hub to lower edge of wheel arch	Dimension A 356 ⁺¹⁰_-10 mm

Courtesy of BMW OF NORTH AMERICA, INC.
