Replace wheel bearings
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
NOTE:
RISK OF DAMAGE
Component damage caused by striking tools.
Brute force can result in component damage.
Component damage caused by striking tools.
Brute force can result in component damage.
- Only use those tools intended for the work.
NOTE:
TECHNICAL INFORMATION
Perform wheel alignment after installation.
Perform wheel alignment after installation.
Preliminary work
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
- Refer to RELEASING THE FRONT BRAKE CALIPER .
- Refer to REMOVING FRONT BRAKE DISC .
- Refer to RELEASING THE SWIVEL BEARING FROM THE SPRING STRUT .
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

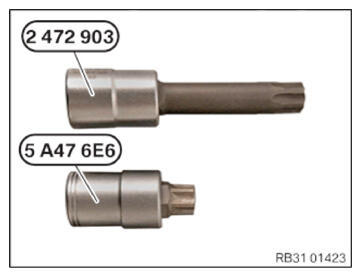

- Use the special tool 2 472 903 or 5 A47 6E6 for unscrewing and tightening the spherical-collar screws.
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.

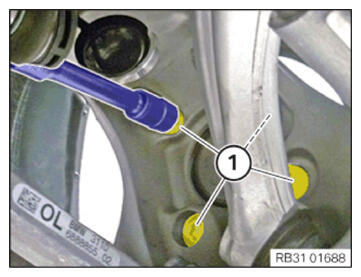

- Release spherical-collar screws (1).
Turn the swivel bearing in and out to reach the spherical-collar screws (1).
NOTE:
TECHNICAL INFORMATION
Keep the connection between the wheel bearing and the swivel bearing clean and free of oil and grease.
Keep the connection between the wheel bearing and the swivel bearing clean and free of oil and grease.

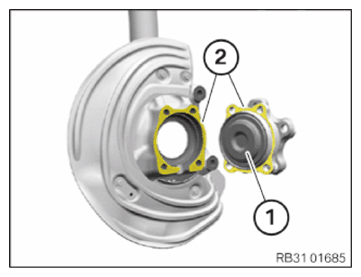

- Remove and replace the wheel bearing (1).
- Parts: Wheel bearing
- Clean contact surfaces (2).
- Position wheel bearing on swivel bearing.
- Replace the spherical-collar screws (1).
Parts: Spherical-collar screw
- Tighten the spherical-collar screws (1) crosswise.
Turn the swivel bearing in and out to reach the spherical-collar screws (1).
TIGHTENING TORQUE SPECIFICATION
| Wheel bearing to swivel bearing | ||
| M12 Replace spherical collar screws. Tighten the spherical-collar screws in crosswise sequence. |
The tightening sequence must strictly be followed and carried out on all spherical-collar screws at the same time! Tightening torque |
20 Nm |
| Initial torque | 140 Nm | |
| Unscrew all bolts. | max. 45° | |
| Tightening torque | 120 Nm | |
| Angle of rotation | 90° | |
Follow-up work
- Refer to ATTACHING THE SWIVEL BEARING TO THE SPRING STRUT .
- Refer to INSTALLING FRONT BRAKE DISC .
- Refer to FASTENING FRONT BRAKE CALIPER .
- Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
- Refer to MEASURING THE RIDE HEIGHT OF THE FRONT AXLE AND ADJUSTING THE NORMAL POSITION .
- Refer to TIGHTENING THE SCREW CONNECTION OF THE WISHBONE ON THE FRONT SUBFRAME .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to PERFORM CHASSIS ALIGNMENT CHECK .
