Attach the swivel bearing to the spring strut
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

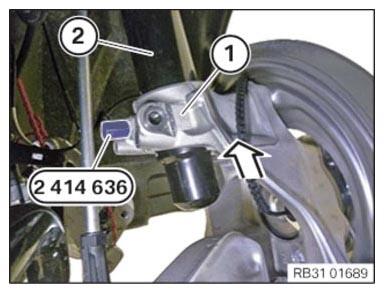

- Align the gap on the swivel bearing (1) correctly to the positioning pin on the spring strut (2).
- Slide the swivel bearing (1) in the arrow direction onto the spring strut (2) all the way to the stop.
- Remove the special tool 2 414 636
.

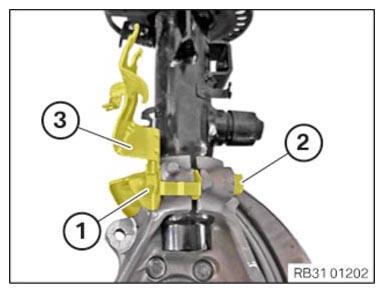

- Position holder (3) on the swivel bearing.
- Replace screw (2) and nut (1).
Parts: Screw, nut
- Insert screw (2) and guide on the nut (1).
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Spring strut to swivel bearing M10
Replace screw and nut.

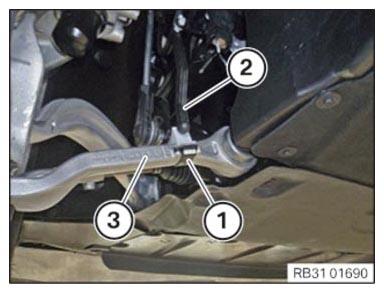

Tightening via screw.Tightening torque 60 Nm Angle of rotation 180° - Release the screw (1). In doing so, counter support at the nut (2).

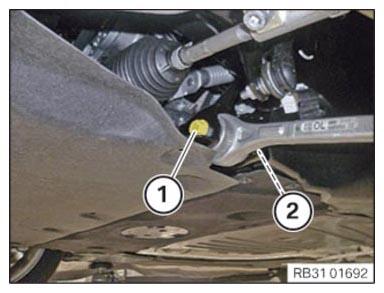

- Replace screw (1) and nut (2).
Parts: Screw, nut
- Insert screw (1) and guide on the nut (2).NOTE: TECHNICAL INFORMATION

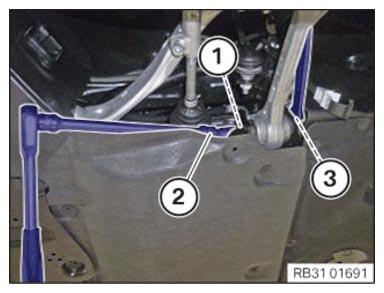

The screw connection is tightened later in the normal position with the torque wrench. - Hand-tighten the screw (1) with the standard tool (2). In doing so, counter support at the nut (3).

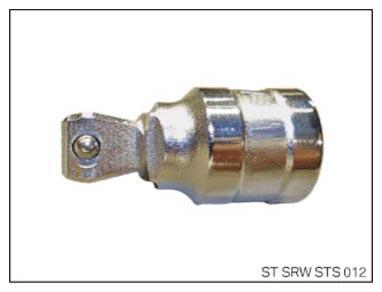

Standard tool: Pivoting extension 1/2 inch
Pivoting extension 1/2 inch
Pivoting extension 1/2 inch
NOTE: The following step(s) must be performed if the specified component(s) is/are installed. - Position the holder (1) of the attachment rod (2) for the ride height sensor on the wishbone (3) and lock it.
